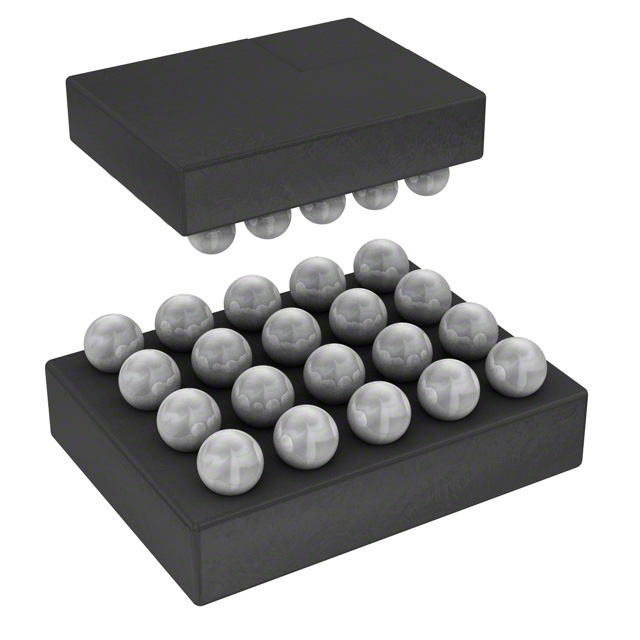

RT8540WSC Richtek USA Inc.
Favorite
Compare
Manufacturer:
Richtek USA Inc.
MFR Product Number:
RT8540WSC
Product Number:
RT8540WSC
MFR Standard Lead Time:
Package/Case:
20-UFBGA, WLCSP
Detailed Description:
IC LED DRV RGLTR PWM 20WLCSP
Datasheet:
Descnt:
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.5A (Flash) 20-WLCSP (1.82x2.22)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Richtek USA Inc.
Series
-
Packaging
Bulk
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
3
Voltage - Supply (Min)
2.5V
Voltage - Supply (Max)
5.5V
Voltage - Output
2.5V ~ 5.7V
Current - Output / Channel
1.5A (Flash)
Frequency
2MHz
Dimming
PWM
Applications
LED Lighting
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
20-UFBGA, WLCSP
Supplier Device Package
20-WLCSP (1.82x2.22)
Base Product Number
RT8540
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
OBSOLETE
HTSUS
0000.00.0000
-
Additional Resources
Standard Package
1
-
