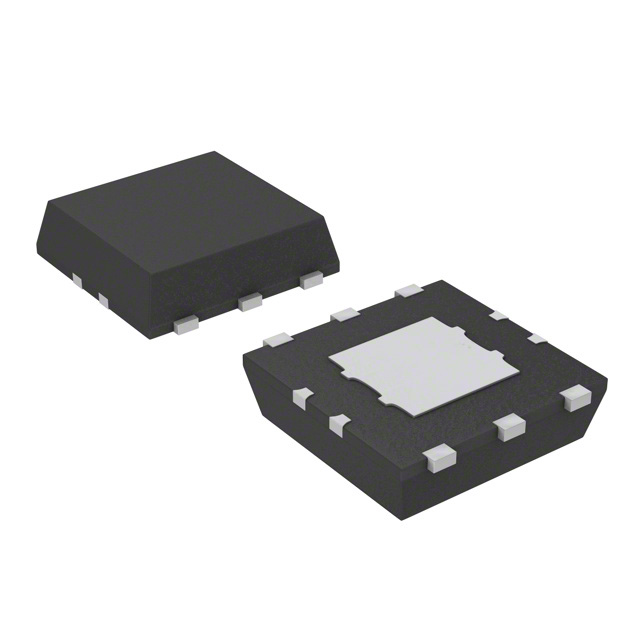

S-1131B52PD-N5LTFG ABLIC Inc.
Favorite
Compare
Manufacturer:
ABLIC Inc.
MFR Product Number:
S-1131B52PD-N5LTFG
Product Number:
S-1131B52PD-N5LTFG
MFR Standard Lead Time:
Package/Case:
6-SMD, Flat Leads Exposed Pad
Detailed Description:
IC REG LINEAR 5.2V 300MA 6HSON
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-HSON (A) (2.9x2.8)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
ABLIC Inc.
Series
S-1131
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
6.5V
Voltage - Output (Min/Fixed)
5.2V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.28V 100mA
Current - Output
300mA
Current - Quiescent (Iq)
1 µA
Current - Supply (Max)
65 µA
PSRR
70dB (1kHz)
Control Features
Enable
Protection Features
Over Current
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
6-SMD, Flat Leads Exposed Pad
Supplier Device Package
6-HSON (A) (2.9x2.8)
Base Product Number
S-1131
Documents & Media
PCN Design/Specification
Solder Plating Material Chg 10/Dec/2018
All Dev Materials Chg 23/Mar/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
3,000
-
