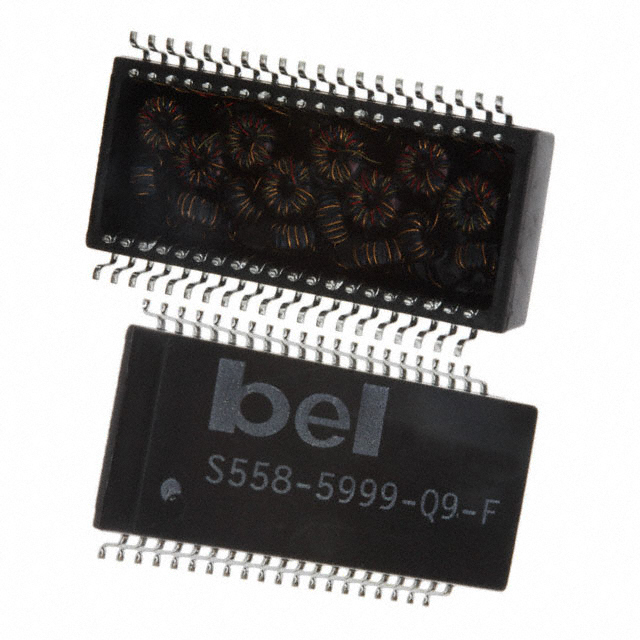

S558-5999-AF-F Bel Fuse Inc.
Favorite
Compare
Manufacturer:
Bel Fuse Inc.
MFR Product Number:
S558-5999-AF-F
Product Number:
S558-5999-AF-F
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
MODULE XFRMR LAN 10/100B-TX SMD
Datasheet:
Descnt:
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Bel Fuse Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
LAN 10/100 Base-T
Inductance
350µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type
Surface Mount
Size / Dimension
1.100" L x 0.476" W (27.94mm x 12.09mm)
Height - Seated (Max)
0.236" (5.99mm)
Operating Temperature
-40°C ~ 85°C
Weight
-
-
Documents & Media
Environmental Information
RoHS Cert Bel Fuse
Bel Fuse REACH
Featured Product
Magnetics Solutions
Bel Fuse's LAN Discrete Transformer Modules
PCN Design/Specification
LAN 04-Apr-2022
S553,S558 Drawing 21/Dec/2015
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
320
