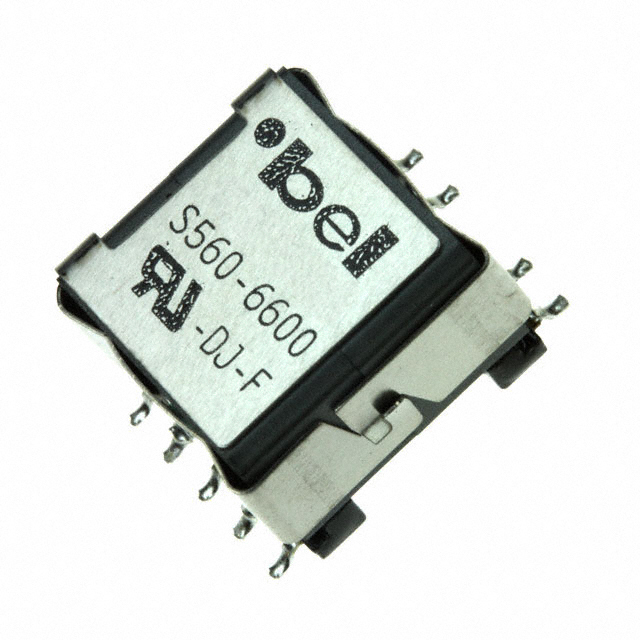

S560-6600-DJ-F Bel Fuse Inc.
Favorite
Compare
Manufacturer:
Bel Fuse Inc.
MFR Product Number:
S560-6600-DJ-F
Product Number:
S560-6600-DJ-F
MFR Standard Lead Time:
Package/Case:
Detailed Description:
MODULE XFRMR LAN SHDSL ISOL SMD
Datasheet:
Descnt:
3mH SHDSL Pulse Transformer 1:5.4 Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Bel Fuse Inc.
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Transformer Type
SHDSL
Inductance
3mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:5.4
Mounting Type
Surface Mount
Size / Dimension
0.540" L x 0.585" W (13.72mm x 14.86mm)
Height - Seated (Max)
0.500" (12.70mm)
Operating Temperature
-40°C ~ 85°C
Weight
-
-
Documents & Media
Environmental Information
Product Drawings
S560-6600-DJ-F Drawing
SHDSL Series Circuit
SHDSL Series Side
SHDSL Series Top
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
200
