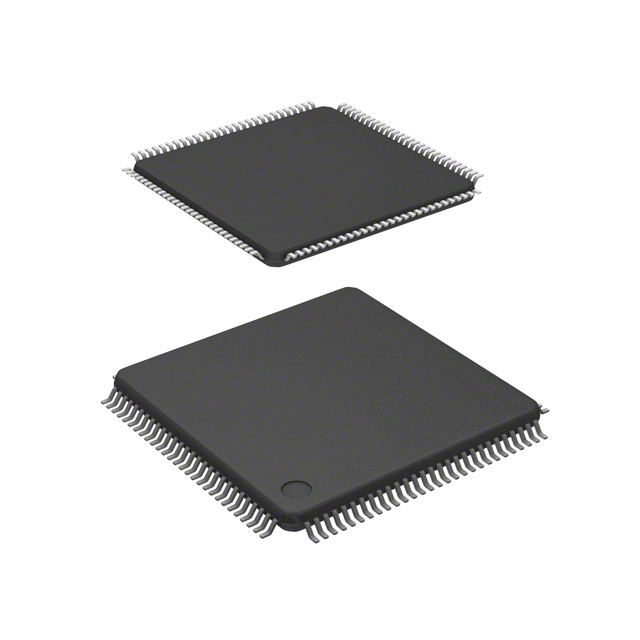

S912XEQ384F1VALR NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
S912XEQ384F1VALR
MFR Standard Lead Time:
52 Weeks
Package/Case:
112-LQFP
Detailed Description:
IC MCU 16BIT 384KB FLASH 112LQFP
Datasheet:
Descnt:
HCS12X HCS12X Microcontroller IC 16-Bit 50MHz 384KB (384K x 8) FLASH 112-LQFP (20x20)
In Stock
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Mfr
NXP USA Inc.
Series
HCS12X
Packaging
Tape & Reel (TR)
Part Status
Active
DigiKey Programmable
Not Verified
Core Processor
HCS12X
Core Size
16-Bit
Speed
50MHz
Connectivity
CANbus, EBI/EMI, I2C, IrDA, SCI, SPI
Peripherals
LVD, POR, PWM, WDT
Number of I/O
91
Program Memory Size
384KB (384K x 8)
Program Memory Type
FLASH
EEPROM Size
4K x 8
RAM Size
24K x 8
Voltage - Supply (Vcc/Vdd)
1.72V ~ 5.5V
Data Converters
A/D 16x12b
Oscillator Type
External
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
112-LQFP (20x20)
Package / Case
112-LQFP
Base Product Number
S912
-
Documents & Media
Environmental Information
NXP USA Inc RoHS Cert
NXP USA Inc REACH
PCN Design/Specification
Removal of S12XEx512,384 Devices 21/Oct/2013
Gold to Copper Wire 20/Sep/2013
PCN Packaging
All Dev Label Update 15/Dec/2020
Mult Dev Pkg Seal 15/Dec/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
3A991A2
HTSUS
8542.31.0001
-
Additional Resources
Other Names
935311788528
Standard Package
500
