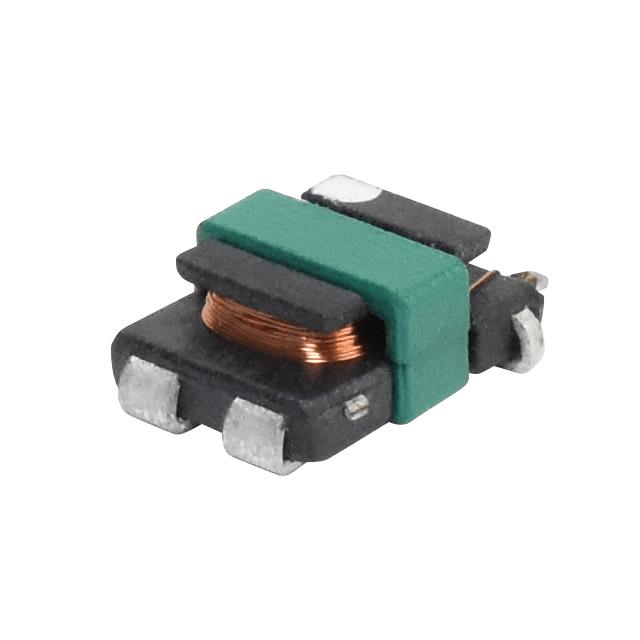

SCS-4-6-20T-TR Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
SCS-4-6-20T-TR
Product Number:
SCS-4-6-20T-TR
MFR Standard Lead Time:
24 Weeks
Package/Case:
Detailed Description:
SMD CURRENT TRANSFORMER 0.053MH-
Datasheet:
Descnt:
9 A 20:1 Current Sense Transformer 50kHz ~ 1MHz 1.5mOhm Primary, 420mOhm Secondary Max 53 µH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
SCS
Packaging
Tape & Reel (TR)
Part Status
Active
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
9 A
Inductance
53 µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
20:1
Current Ratio
-
DC Resistance (DCR)
1.5mOhm Primary, 420mOhm Secondary Max
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max)
0.110" (2.80mm)
Termination Style
J Lead
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Affected
-
Additional Resources
Other Names
595-SCS-4-6-20T-TR
Standard Package
2,500
