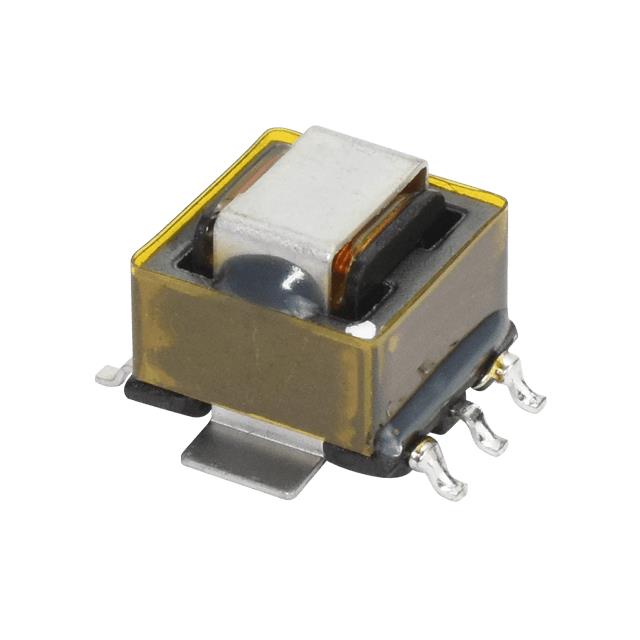

SCS-8-3-70T-TR Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
SCS-8-3-70T-TR
Product Number:
SCS-8-3-70T-TR
MFR Standard Lead Time:
24 Weeks
Package/Case:
Detailed Description:
SMD CURRENT TRANSFORMER 2.70MH-T
Datasheet:
Descnt:
15 A 70:1 Current Sense Transformer 50kHz ~ 1MHz 3.9mOhm Primary, 1Ohm Secondary Max 2.7 mH Surface Mount
In Stock
350
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
SCS
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
15 A
Inductance
2.7 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
70:1
Current Ratio
-
DC Resistance (DCR)
3.9mOhm Primary, 1Ohm Secondary Max
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.512" L x 0.433" W (13.00mm x 11.00mm)
Height - Seated (Max)
0.307" (7.80mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Affected
-
Additional Resources
Other Names
Standard Package
350
