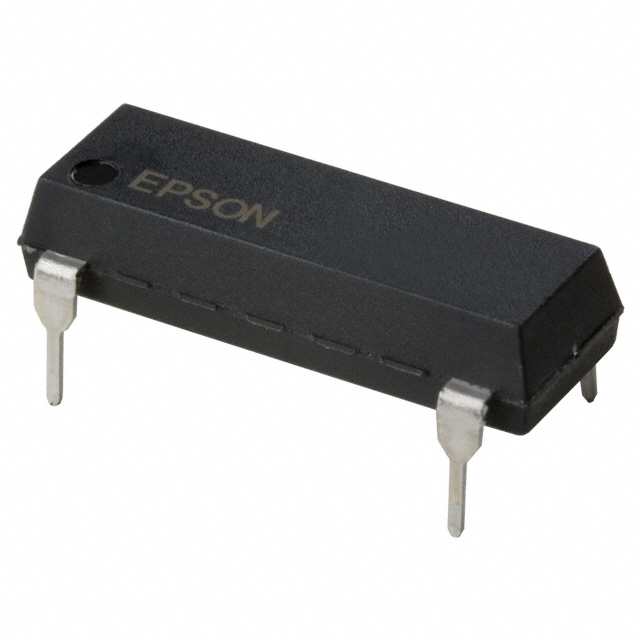

SG-8002DB-MPT EPSON
Favorite
Compare
Manufacturer:
EPSON
MFR Product Number:
SG-8002DB-MPT
Product Number:
SG-8002DB-MPT
MFR Standard Lead Time:
Package/Case:
14-DIP, 4 Leads (Full Size)
Detailed Description:
XTAL OSC PROG XO TTL 5V 100PPM
Datasheet:
Descnt:
XO (Standard) TTL 1 MHz ~ 55 MHz Programmable Oscillator 5V Enable/Disable 14-DIP, 4 Leads (Full Size)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPSON
Series
SG-8002
Packaging
Tube
Part Status
Obsolete
Base Resonator
Crystal
Type
XO (Standard)
Programmable Type
Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range
1 MHz ~ 55 MHz
Function
Enable/Disable
Output
TTL
Voltage - Supply
5V
Frequency Stability
±100ppm
Frequency Stability (Total)
-
Operating Temperature
-40°C ~ 85°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
45mA
Ratings
-
Mounting Type
Through Hole
Package / Case
14-DIP, 4 Leads (Full Size)
Size / Dimension
0.780" L x 0.250" W (19.81mm x 6.36mm)
Height - Seated (Max)
0.209" (5.30mm)
Current - Supply (Disable) (Max)
30 mA
Documents & Media
Product Drawings
SG-8002DB Side 1
SG-8002DB Top
SG-8002DB Side 2
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
SG-8002DB-PTM
Standard Package
1
