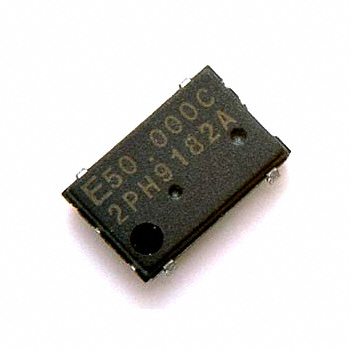

SG-8002JF 1.8432M-PHML0 ROHS EPSON
Favorite
Compare
Manufacturer:
EPSON
MFR Product Number:
SG-8002JF 1.8432M-PHML0 ROHS
Product Number:
SG-8002JF-1-8432M-PHML0-ROHS
MFR Standard Lead Time:
Package/Case:
4-SOJ, 5.08mm pitch
Detailed Description:
XTAL OSC XO 1.8432MHZ CMOS SMD
Datasheet:
Descnt:
1.8432 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Mfr
EPSON
Series
SG-8002JF
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Base Resonator
Crystal
Type
XO (Standard)
Frequency
1.8432 MHz
Function
Enable/Disable
Output
CMOS
Voltage - Supply
5V
Frequency Stability
±50ppm
Absolute Pull Range (APR)
-
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
45mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SOJ, 5.08mm pitch
Size / Dimension
0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max)
0.059" (1.50mm)
Current - Supply (Disable) (Max)
25mA
Documents & Media
Datasheets
HTML Datasheet
SG-8002 Part Number Guide
SG-8002(CA,CE,DC,DB,LB,JA,JC,JF) Series Datasheet
Product Drawings
SG-8002JF Side 2
SG-8002JF Side 1
SG-8002JF Top
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
