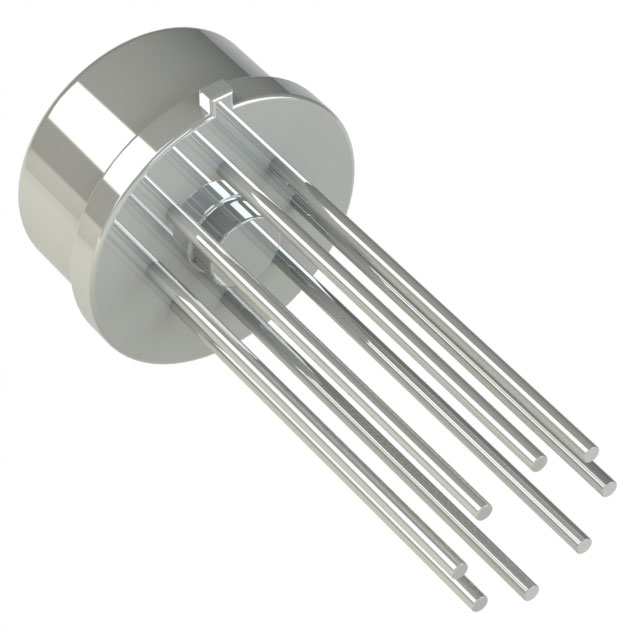

SG1626T-883B Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
SG1626T-883B
Product Number:
SG1626T-883B
MFR Standard Lead Time:
Package/Case:
TO-99-8 Metal Can
Detailed Description:
HALF BRIDGE DRIVER, INVERTING, H
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Inverting TO-99
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tray
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
N-Channel MOSFET
Voltage - Supply
22V
Logic Voltage - VIL, VIH
0.7V, 2V
Current - Peak Output (Source, Sink)
3A
Input Type
Inverting
Rise / Fall Time (Typ)
30ns, 30ns
Operating Temperature
-55°C ~ 125°C (TJ)
Grade
Military
Qualification
MIL-STD-883
Mounting Type
Through Hole
Package / Case
TO-99-8 Metal Can
Supplier Device Package
TO-99
Base Product Number
SG1626
-
Documents & Media
Datasheets
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
150-SG1626T-883B
Standard Package
50
