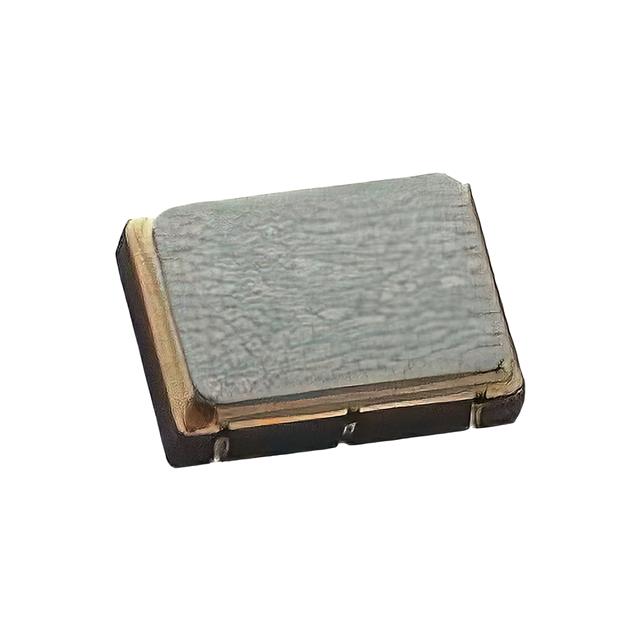

SG3225CAN 12.0000M-TJGA3 EPSON
Favorite
Compare
Manufacturer:
EPSON
MFR Product Number:
SG3225CAN 12.0000M-TJGA3
Product Number:
SG3225CAN-12-0000M-TJGA3
MFR Standard Lead Time:
18 Weeks
Package/Case:
4-SMD, No Lead
Detailed Description:
XTAL OSC XO 12.0000MHZ CMOS SMD
Datasheet:
Descnt:
12 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.63V Enable/Disable 4-SMD, No Lead
In Stock
349
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
The EPSON SG3225CAN 12.0000M-TJGA3 is a high-stability, low-jitter 12 MHz CMOS crystal oscillator ideal for networking, industrial control, and embedded systems requiring precise timing and robust temperature performance (−40°C to +105°C).
Product Highlights:
Epson SG3225CAN 12.0000M-TJGA3 is a high-precision, low-jitter CMOS crystal oscillator with ±0.5 ppm stability, ultra-low phase jitter (<1 ps RMS), AEC-Q200 qualification, and compact 3.2×2.5 mm SMD package—ideal for automotive, industrial, and communication applications.
Product Attributes
Mfr
EPSON
Series
SG3225CAN
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Base Resonator
Crystal
Type
XO (Standard)
Frequency
12 MHz
Function
Enable/Disable
Output
CMOS
Voltage - Supply
1.6V ~ 3.63V
Frequency Stability
±50ppm
Absolute Pull Range (APR)
-
Operating Temperature
-40°C ~ 85°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
1.8mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)
0.047" (1.20mm)
Current - Supply (Disable) (Max)
-
-
Documents & Media
Datasheets
SG2016, 3225, 5032, 7050CAN, SG-210STF
Product Configuration Guide
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0050
-
Additional Resources
Other Names
Standard Package
250
