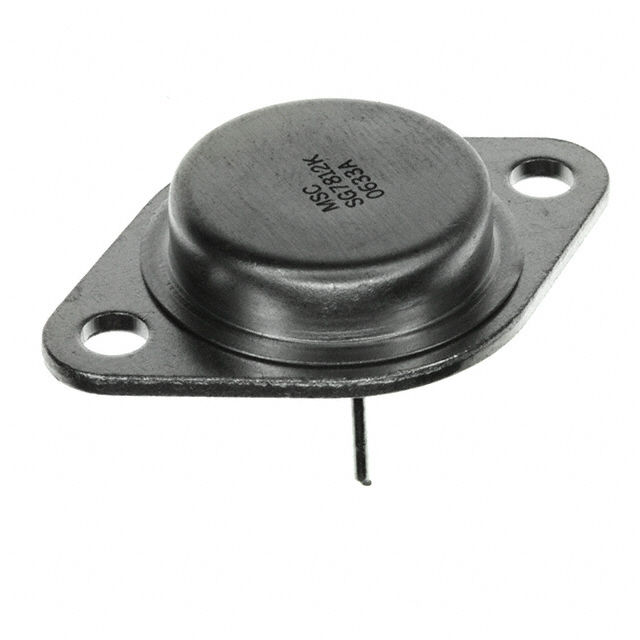

SG7812K Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
SG7812K
Product Number:
SG7812K
MFR Standard Lead Time:
Package/Case:
TO-204AA, TO-3
Detailed Description:
IC REG LINEAR 12V 1.5A TO204AD
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-204AD (TO-3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
-
Packaging
Bulk
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
35V
Voltage - Output (Min/Fixed)
12V
Voltage - Output (Max)
-
Voltage Dropout (Max)
2.5V 500mA
Current - Output
1.5A
Current - Supply (Max)
7 mA
PSRR
61dB (120Hz)
Control Features
Current Limit, Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-55°C ~ 125°C (TA)
Grade
Military
Qualification
MIL-STD-883
Mounting Type
Through Hole
Package / Case
TO-204AA, TO-3
Supplier Device Package
TO-204AD (TO-3)
Base Product Number
SG7812
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
20
-
