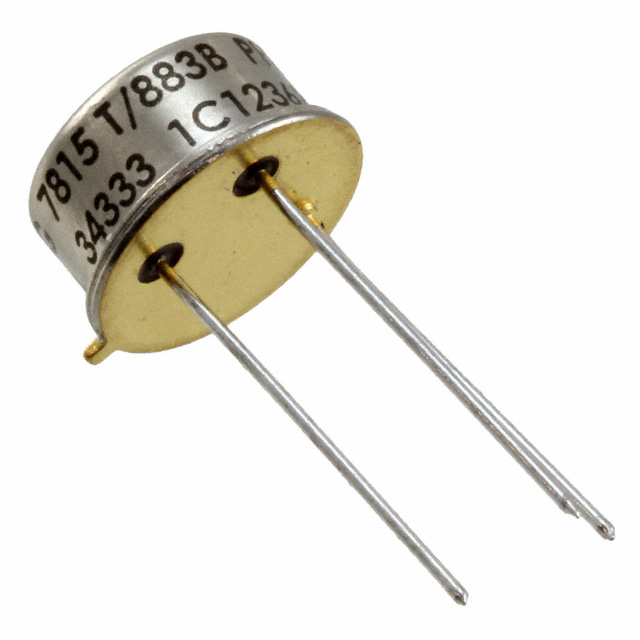

SG7815T-883B Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
SG7815T-883B
Product Number:
SG7815T-883B
MFR Standard Lead Time:
Package/Case:
TO-39-3 Lens Top Metal Can
Detailed Description:
IC REG LINEAR 15V 500MA TO39
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-39
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
-
Packaging
Bulk
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
35V
Voltage - Output (Min/Fixed)
15V
Voltage - Output (Max)
-
Voltage Dropout (Max)
2.5V 500mA
Current - Output
500mA
Current - Quiescent (Iq)
7 mA
PSRR
60dB (120Hz)
Control Features
-
Protection Features
Over Current, Over Temperature
Operating Temperature
-55°C ~ 125°C
Grade
Military
Qualification
MIL-STD-883
Mounting Type
Through Hole
Package / Case
TO-39-3 Lens Top Metal Can
Supplier Device Package
TO-39
Base Product Number
SG7815
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
50
