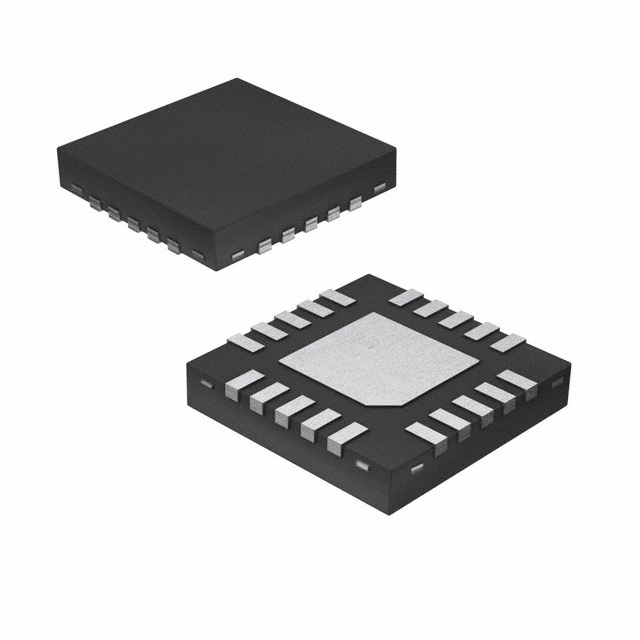

SGTL5000XNLA3R2 NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
SGTL5000XNLA3R2
Product Number:
SGTL5000XNLA3R2
MFR Standard Lead Time:
26 Weeks
Package/Case:
20-UFQFN Exposed Pad
Detailed Description:
IC AUDIO CODEC STEREO 20-QFN
Datasheet:
Descnt:
Stereo Audio Interface I2C, Serial, SPI™ 20-QFN-EP (3x3)
In Stock
13215
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Stereo Audio
Data Interface
I2C, Serial, SPI™
Resolution (Bits)
-
Number of ADCs / DACs
1 / 1
Sigma Delta
No
S/N Ratio, ADCs / DACs (db) Typ
90 / 100
Dynamic Range, ADCs / DACs (db) Typ
-
Voltage - Supply, Analog
1.62V ~ 3.6V
Voltage - Supply, Digital
1.1V ~ 2V, 1.62V ~ 3.6V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
20-UFQFN Exposed Pad
Supplier Device Package
20-QFN-EP (3x3)
Base Product Number
SGTL5000
Documents & Media
PCN Design/Specification
PCN Packaging
All Dev Label Update 15/Dec/2020
Mult Dev Pkg Seal 15/Dec/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
5A991B1
HTSUS
8542.31.0001
-
Additional Resources
Other Names
Standard Package
5,000
