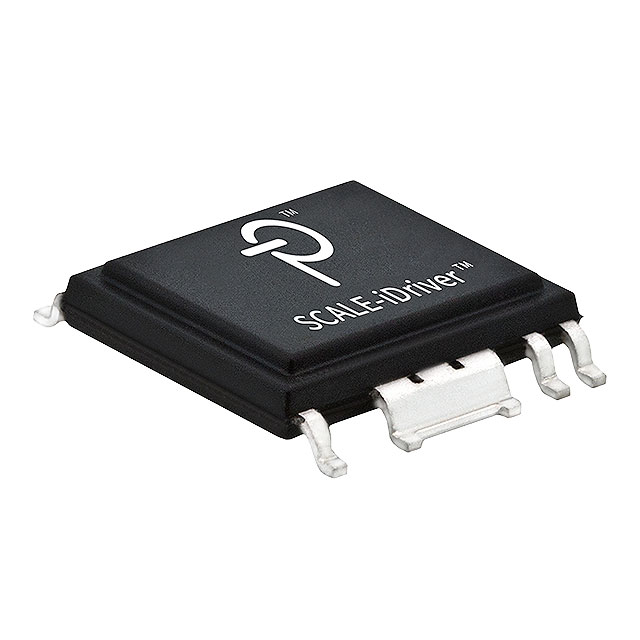

SID1183K-TL Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
SID1183K-TL
Product Number:
SID1183K-TL
MFR Standard Lead Time:
Package/Case:
16-PowerSOIC (0.350\, 8.89mm Width), 15 Leads
Detailed Description:
IC GATE DRV HI/LO SIDE ESOP-R16B
Datasheet:
Descnt:
High-Side or Low-Side Gate Driver IC Inverting eSOP-R16B
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
SCALE™-1
Packaging
Cut Tape (CT)
Part Status
Obsolete
DigiKey Programmable
Not Verified
Driven Configuration
High-Side or Low-Side
Channel Type
Single
Number of Drivers
2
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
4.75V ~ 5.25V
Logic Voltage - VIL, VIH
0.5V, 3.3V
Current - Peak Output (Source, Sink)
8A, 48A
Input Type
Inverting
Rise / Fall Time (Typ)
465ns, 460ns
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package
eSOP-R16B
Base Product Number
SID1183
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
