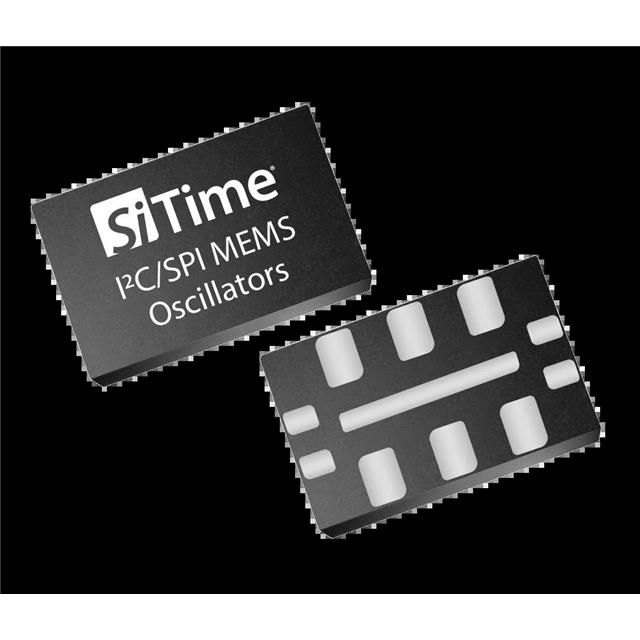

SIT3521AI-2CF33-GM156.250000 SiTime
Favorite
Compare
Manufacturer:
SiTime
MFR Product Number:
SIT3521AI-2CF33-GM156.250000
Product Number:
SIT3521AI-2CF33-GM156-250000
MFR Standard Lead Time:
4 Weeks
Package/Case:
10-VQFN Exposed Pad
Detailed Description:
MEMS OSC I2C/SPI 156.250000 MHZ
Datasheet:
Descnt:
156.25 MHz DCXO LVDS Oscillator 3.3V 10-VQFN Exposed Pad
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
The SIT3521AI-2CF33-GM156.250000 is a high-stability, low-jitter 156.25 MHz MEMS oscillator from SiTime, ideal for Ethernet, PCIe, and telecom applications requiring robust performance across industrial temperatures (–40°C to +85°C) and excellent shock/vibration resistance.
Product Highlights:
SiTime SIT3521AI-2CF33-GM156.250000 is an ultra-low-jitter (80 fs RMS), high-frequency (156.25 MHz) MEMS oscillator with excellent stability (±20 ppm), wide temperature range (–40°C to +85°C), and robust shock/vibration resistance—ideal for 5G, networking, and high-speed SerDes applications.
Product Attributes
Mfr
SiTime
Series
SiT3521, Elite Platform™
Packaging
Tape & Reel (TR)
Part Status
Active
Base Resonator
MEMS
Type
DCXO
Frequency
156.25 MHz
Function
-
Output
LVDS
Voltage - Supply
3.3V
Frequency Stability
±10ppm
Absolute Pull Range (APR)
±10ppm
Operating Temperature
-40°C ~ 85°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
80mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
10-VQFN Exposed Pad
Size / Dimension
0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)
0.035" (0.90mm)
Current - Supply (Disable) (Max)
-
Base Product Number
SIT3521
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
1473-SIT3521AI-2CF33-GM156.250000TR
Standard Package
250
