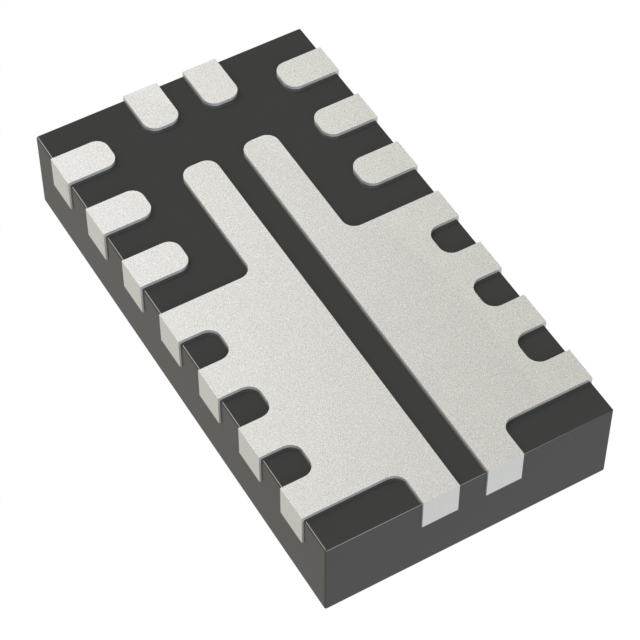

SLG59H1020V Renesas Electronics Corporation
Favorite
Compare
Manufacturer:
Renesas Electronics Corporation
MFR Product Number:
SLG59H1020V
Product Number:
SLG59H1020V
MFR Standard Lead Time:
12 Weeks
Package/Case:
18-PowerUFQFN
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 18STQFN
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 3A 18-STQFN (1.6x3)
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Renesas Electronics Corporation
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
4.5V ~ 20V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
3A
Rds On (Typ)
50mOhm
Input Type
CMOS
Features
Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
18-STQFN (1.6x3)
Package / Case
18-PowerUFQFN
Base Product Number
SLG59
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
3,000
