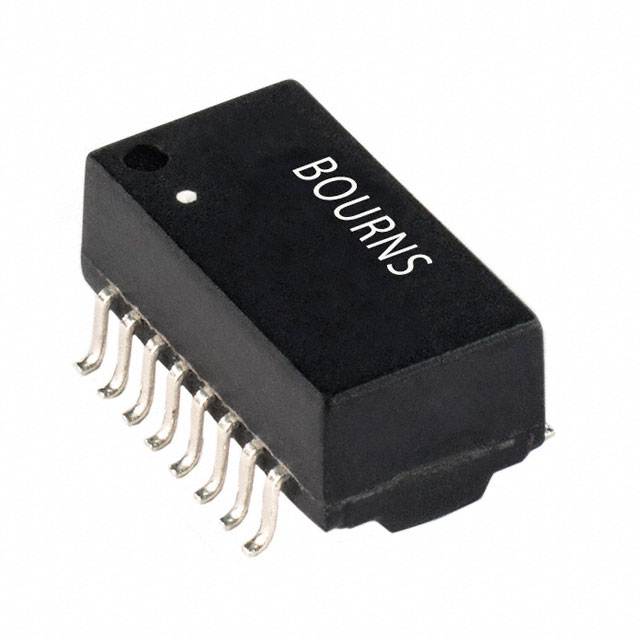

SM75056PEL Bourns Inc.
Favorite
Compare
Manufacturer:
Bourns Inc.
MFR Product Number:
SM75056PEL
Product Number:
SM75056PEL
MFR Standard Lead Time:
28 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1 TX 1:1 RX 1.2MH
Datasheet:
Descnt:
1.2mH Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Bourns Inc.
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Transformer Type
-
Inductance
1.2mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
Mounting Type
Surface Mount
Size / Dimension
0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max)
0.222" (5.65mm)
Operating Temperature
-40°C ~ 85°C
Weight
-
Base Product Number
SM750
Documents & Media
Datasheets
SM75056PEL
SM7505(6,7)PEL Bulletin
Environmental Information
Bourns REACH
RoHS SMxxxxEL, SMxxxxAL, SMxxxxPEL Series
PCN Obsolescence/ EOL
Mult Devs 16/Jun/2023
Mult Devs EOL Retraction 17/Oct/2023
HTML Datasheet
SM75056PEL
SM7505(6,7)PEL Bulletin
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Standard Package
600
-
