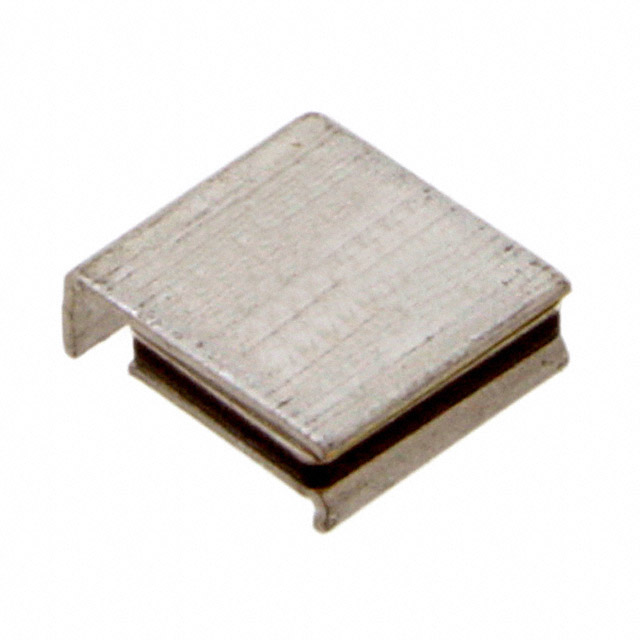

SMD030F-2018-2 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SMD030F-2018-2
Product Number:
SMD030F-2018-2
MFR Standard Lead Time:
15 Weeks
Package/Case:
2-SMD
Detailed Description:
PTC RESET FUSE 60V 300MA 2SMD
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 60V 300 mA Ih Surface Mount 2-SMD
In Stock
10383
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, SMD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
60V
Current - Hold (Ih) (Max)
300 mA
Current - Trip (It)
800 mA
Current - Max
20 A
Time to Trip
1.5 s
Resistance - Initial (Ri) (Min)
500 mOhms
Resistance - Post Trip (R1) (Max)
2.3 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
2-SMD
Size / Dimension
0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max)
-
Thickness (Max)
0.070" (1.78mm)
Lead Spacing
-
Approval Agency
CSA, TUV, UL
-
Documents & Media
Datasheets
SMD030F-2018 Spec
PolySwitch, SMD Catalog
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
HTML Datasheet
PolySwitch, SMD Catalog
SMD030F-2018 Spec
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
4,000
