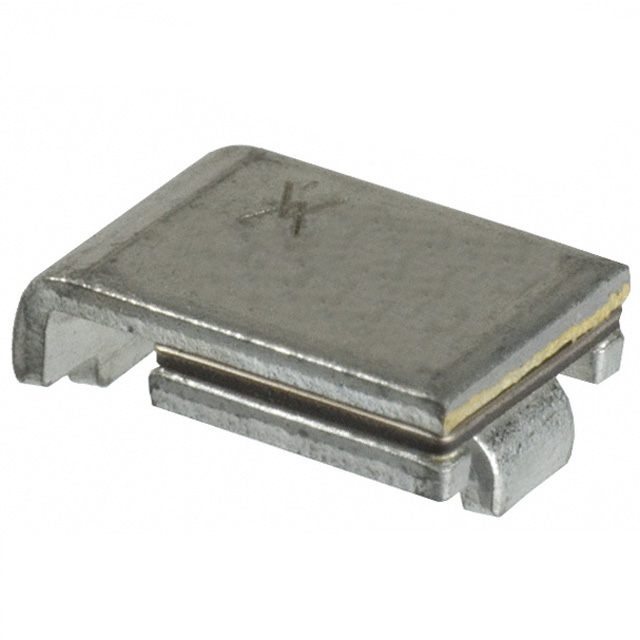

SMD100-2 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SMD100-2
Product Number:
SMD100-2
MFR Standard Lead Time:
Package/Case:
2920 (7351 Metric)
Detailed Description:
POLYSWITCH 1.10A HOLD SMD
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 30V 1.1 A Ih Surface Mount 2920 (7351 Metric)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, SMD
Packaging
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Type
Polymeric
Voltage - Max
30V
Current - Hold (Ih) (Max)
1.1 A
Current - Trip (It)
2.2 A
Current - Max
40 A
Time to Trip
500 ms
Resistance - Initial (Ri) (Min)
120 mOhms
Resistance - Post Trip (R1) (Max)
480 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
2920 (7351 Metric)
Size / Dimension
0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max)
-
Thickness (Max)
0.060" (1.52mm)
Lead Spacing
-
Approval Agency
CSA, TUV, UL
-
Documents & Media
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
2,000
