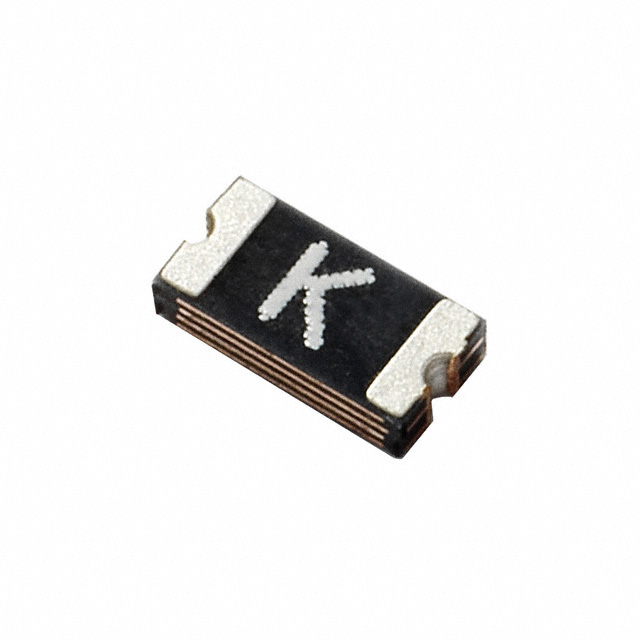

SMD1206P012TFA Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SMD1206P012TFA
Product Number:
SMD1206P012TFA
MFR Standard Lead Time:
Package/Case:
1206 (3216 Metric), Concave
Detailed Description:
PTC RESET FUSE 30V 125MA 1206
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 30V 125 mA Ih Surface Mount 1206 (3216 Metric), Concave
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
POLY-FUSE®, SMD1206
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
Polymeric
Voltage - Max
30V
Current - Hold (Ih) (Max)
125 mA
Current - Trip (It)
290 mA
Current - Max
40 A
Time to Trip
200 ms
Resistance - Initial (Ri) (Min)
1.5 Ohms
Resistance - Post Trip (R1) (Max)
6 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max)
-
Thickness (Max)
0.041" (1.05mm)
Lead Spacing
-
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
SMD1206P012TSA-NDR
Standard Package
3,000
