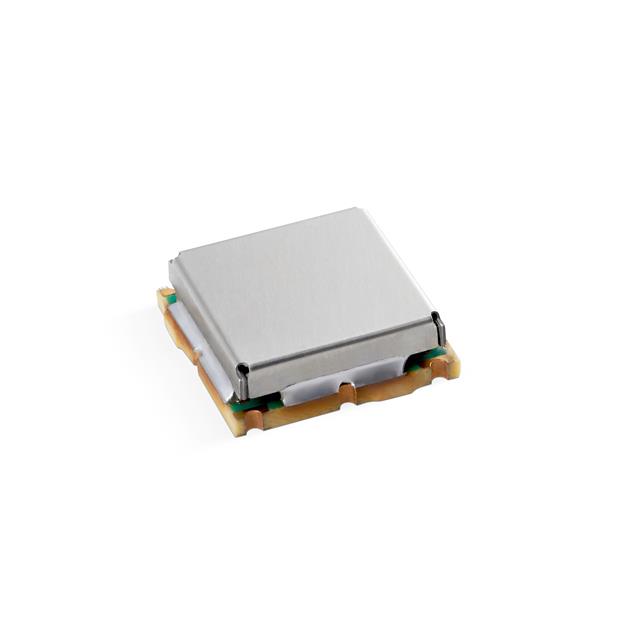

SMV2278A-LF Z-Communications, Inc.
Favorite
Compare
Manufacturer:
Z-Communications, Inc.
MFR Product Number:
SMV2278A-LF
Product Number:
SMV2278A-LF
MFR Standard Lead Time:
Package/Case:
Detailed Description:
VCO Frequency 2275 MHz - 2280 M
Datasheet:
Descnt:
2277MHz Center Frequency Voltage Controlled Oscillator 4.5 ±2.5 dBm -10 2nd Harmonic Typ (dBc)
In Stock
10
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Z-Communications, Inc.
Series
SMV
Packaging
Strip
Part Status
Active
Frequency Range
2275 ~ 2280MHz
Frequency - Center
2277MHz
Voltage - Supply
3V
2nd Harmonic, Typ (dBc)
-10
Icc Max
16mA
Pushing (MHz/V)
6
Power (dBm)
4.5 ±2.5
Phase Noise Typ (dBc/Hz)
-91
Operating Temperature
-40°C ~ 90°C
Size / Dimension
0.300" L x 0.300" W (7.62mm x 7.62mm)
Height
0.110" (2.79mm)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
Additional Resources
Other Names
5102-SMV2278A-LF
Standard Package
1
