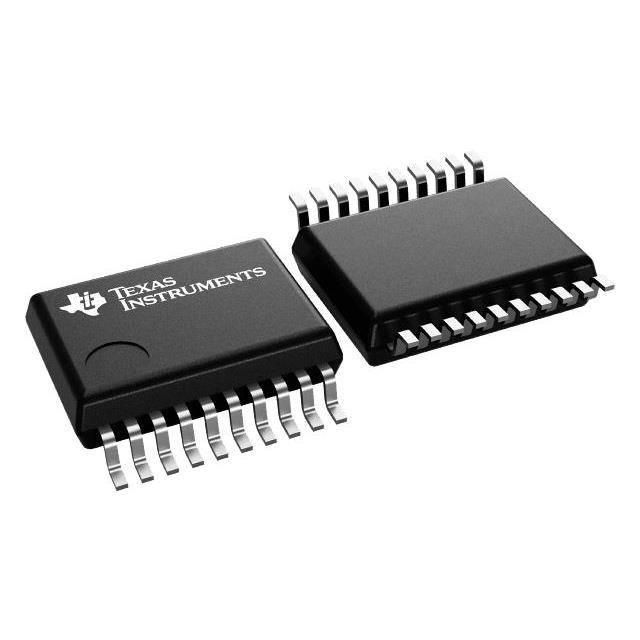

SN74ACT240DGSR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
SN74ACT240DGSR
Product Number:
SN74ACT240DGSR
MFR Standard Lead Time:
12 Weeks
Package/Case:
20-TFSOP (0.118\, 3.00mm Width)
Detailed Description:
EIGHT-CHANNEL 4.5V-TO-5.5V INVER
Datasheet:
Descnt:
Inverter IC 8 Channel 3-State 20-VSSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
74ACT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Logic Type
Inverter
Number of Circuits
8
Number of Inputs
8
Features
3-State
Voltage - Supply
4.5V ~ 5.5V
Current - Quiescent (Max)
4 µA
Current - Output High, Low
24mA, 24mA
Input Logic Level - Low
0.8V
Input Logic Level - High
2V
Max Propagation Delay V, Max CL
8.5ns 5V, 50pF
Operating Temperature
-40°C ~ 125°C
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
20-VSSOP
Package / Case
20-TFSOP (0.118", 3.00mm Width)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
5,000
