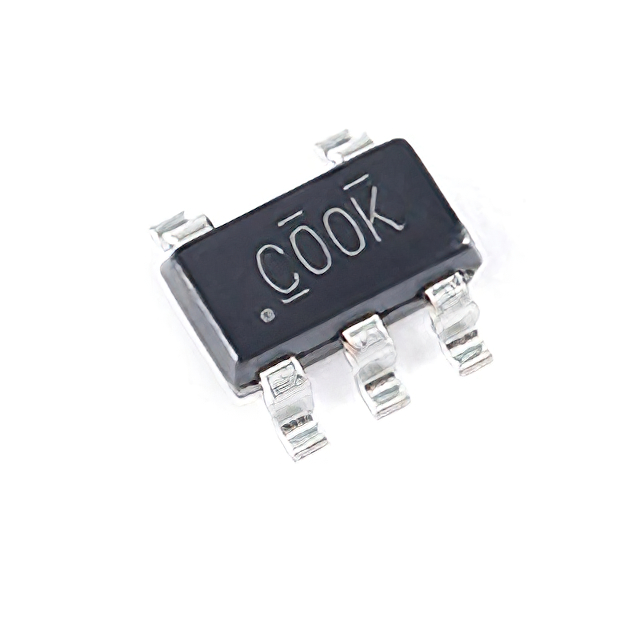

SN74LVC1G00DBVR UMW
Favorite
Compare
Manufacturer:
UMW
MFR Product Number:
SN74LVC1G00DBVR
Product Number:
SN74LVC1G00DBVR
MFR Standard Lead Time:
2 Weeks
Package/Case:
SC-74A, SOT-753
Detailed Description:
IC GATE NAND 1CH 2-INP SOT23-5
Datasheet:
Descnt:
NAND Gate IC 1 Channel SOT-23-5
In Stock
1263
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
UMW
Series
74LVC
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
1
Number of Inputs
2
Features
-
Voltage - Supply
1.65V ~ 5.5V
Current - Quiescent (Max)
10 µA
Current - Output High, Low
32mA, 32mA
Input Logic Level - Low
-
Input Logic Level - High
1.7V
Max Propagation Delay V, Max CL
10ns 5V, 15pF
Operating Temperature
-40°C ~ 105°C
Mounting Type
Surface Mount
Supplier Device Package
SOT-23-5
Package / Case
SC-74A, SOT-753
Base Product Number
74LVC1G00
-
Documents & Media
Environmental Information
UTD REACH SGS 223 Jan 2022 Package
UTD RoHS3 SGS Package
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0070
-
Additional Resources
Other Names
Standard Package
3,000
