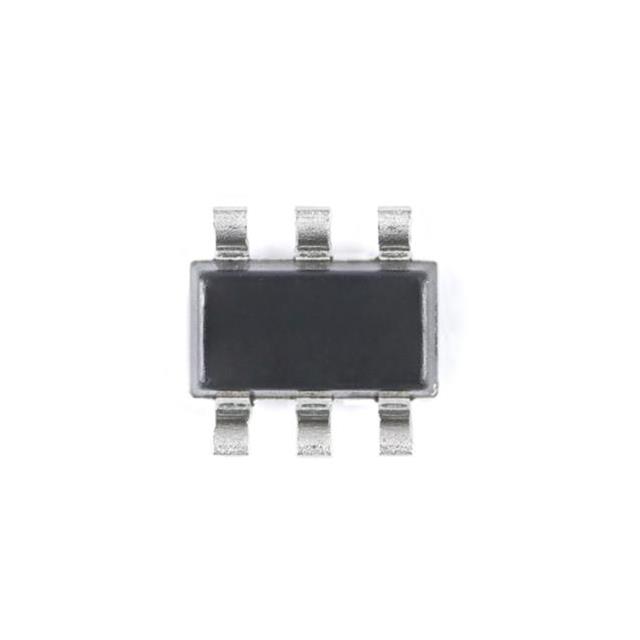

SN74LVC1G3157DCKR UMW
Favorite
Compare
Manufacturer:
UMW
MFR Product Number:
SN74LVC1G3157DCKR
Product Number:
SN74LVC1G3157DCKR
MFR Standard Lead Time:
2 Weeks
Package/Case:
6-VSSOP, SC-88, SOT-363
Detailed Description:
IC SW SPDT-NO/NCX1 7OHM SC70-6
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 7Ohm (Typ) SC70-6
In Stock
2969
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
UMW
Series
74LVC
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPDT - NO/NC
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
7Ohm (Typ)
Channel-to-Channel Matching (ΔRon)
150mOhm (Typ)
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
5.2ns, 3.5ns
-3db Bandwidth
350MHz
Charge Injection
7pC
Channel Capacitance (CS(off), CD(off))
5.2pF
Current - Leakage (IS(off)) (Max)
100nA (Max)
Crosstalk
-
Operating Temperature
-55°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
6-VSSOP, SC-88, SOT-363
Supplier Device Package
SC70-6
Base Product Number
74LVC1G3157
Documents & Media
Environmental Information
UTD REACH SGS 223 Jan 2022 Package
UTD RoHS3 SGS Package
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
