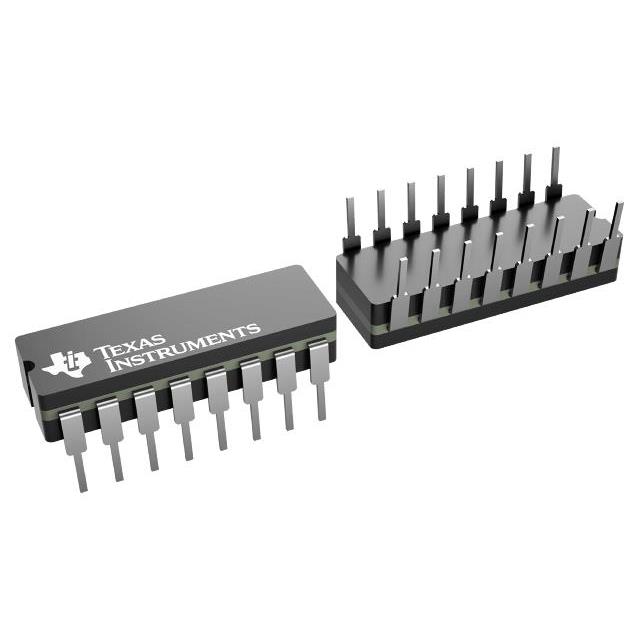

SNJ5423J Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
SNJ5423J
Product Number:
SNJ5423J
MFR Standard Lead Time:
Package/Case:
16-CDIP (0.300\, 7.62mm)
Detailed Description:
IC GATE NOR 2CH 4-INP 16CDIP
Datasheet:
Descnt:
NOR Gate IC 2 Channel Strobe 16-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Logic Type
NOR Gate
Number of Circuits
2
Number of Inputs
4
Features
Strobe
Voltage - Supply
4.5V ~ 5.5V
Current - Quiescent (Max)
19 mA
Current - Output High, Low
16mA, 800µA
Input Logic Level - Low
0.8V
Input Logic Level - High
2V
Max Propagation Delay V, Max CL
22ns 5V, 15pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole
Supplier Device Package
16-CDIP
Package / Case
16-CDIP (0.300", 7.62mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
296-SNJ5423J
Standard Package
1
