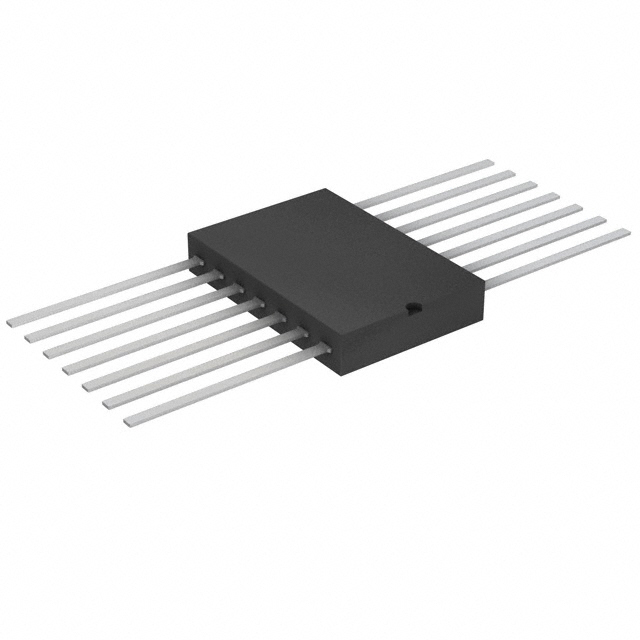

SNJ54LS01W Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
SNJ54LS01W
Product Number:
SNJ54LS01W
MFR Standard Lead Time:
Package/Case:
14-CFlatPack
Detailed Description:
IC GATE NAND 4CH 2-INP 14CFP
Datasheet:
Descnt:
NAND Gate IC 4 Channel Open Collector 14-CFP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
54LS
Packaging
Tube
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
4
Number of Inputs
2
Features
Open Collector
Voltage - Supply
4.5V ~ 5.5V
Current - Quiescent (Max)
4.4 mA
Current - Output High, Low
100µA, 4mA
Input Logic Level - Low
0.7V
Input Logic Level - High
2V
Max Propagation Delay V, Max CL
32ns 5V, 15pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Supplier Device Package
14-CFP
Package / Case
14-CFlatPack
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
-
