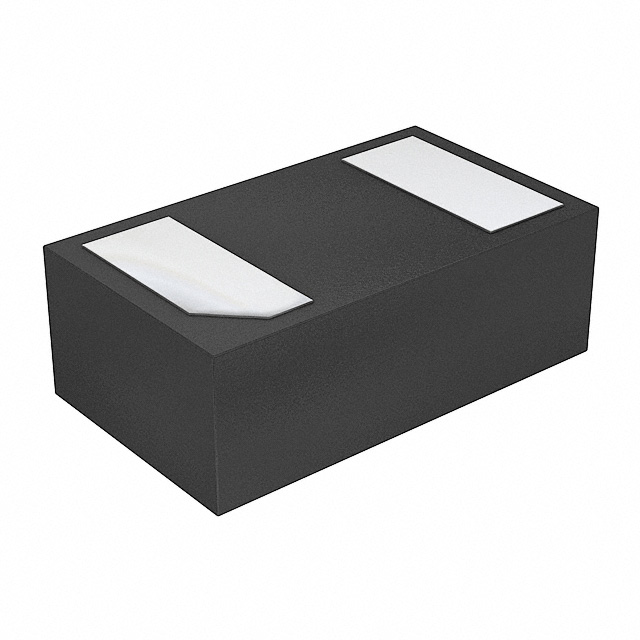

SP0402B-ELC-01ETG Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SP0402B-ELC-01ETG
Product Number:
SP0402B-ELC-01ETG
MFR Standard Lead Time:
11 Weeks
Package/Case:
0402 (1006 Metric)
Detailed Description:
TVS DIODE 7VWM 14VC 0402/2DFN
Datasheet:
Descnt:
14V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0402/2DFN (1x0.60)
In Stock
340000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Littelfuse Inc.
Series
SPA®
Packaging
Tape & Reel (TR)
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
7V
Voltage - Breakdown (Min)
9.6V (Typ)
Voltage - Clamping (Max) Ipp
14V (Typ)
Current - Peak Pulse (10/1000µs)
2.5A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
0.15pF 1MHz
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
0402 (1006 Metric)
Supplier Device Package
0402/2DFN (1x0.60)
Documents & Media
Datasheets
Enhanced ESD Discrete TVS (ELC) Series
SPyyyy(U,B)-ELC-01(E,U)TG
Building, Home Automation Appl Guide
Environmental Information
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
F9743TR
Standard Package
10,000
