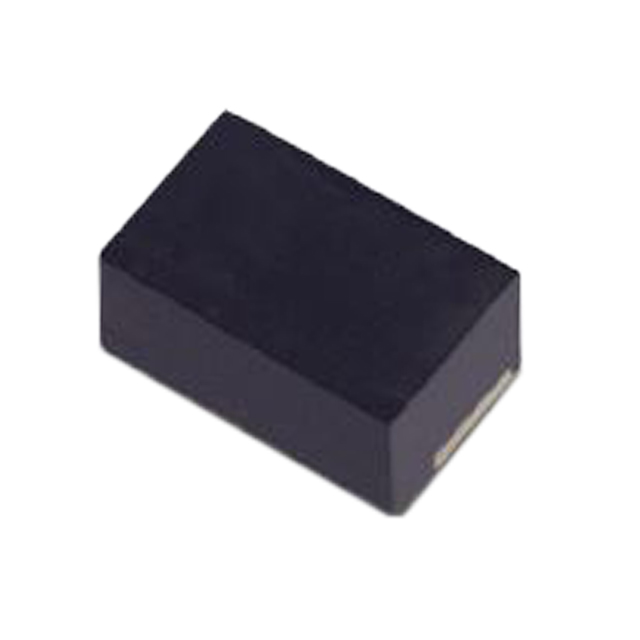

SP1054-01UTG Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SP1054-01UTG
Product Number:
SP1054-01UTG
MFR Standard Lead Time:
Package/Case:
01005 (0402 Metric)
Detailed Description:
TVS DIODE 6VWM 13VC 01005
Datasheet:
Descnt:
13V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 01005/DFN
In Stock
20060
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Littelfuse Inc.
Series
SP1054, SPA®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Type
Zener
Unidirectional Channels
1
Voltage - Reverse Standoff (Typ)
6V (Max)
Voltage - Breakdown (Min)
6.5V
Voltage - Clamping (Max) Ipp
13V
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
No
Applications
-
Capacitance Frequency
-
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Package / Case
01005 (0402 Metric)
Supplier Device Package
01005/DFN
Documents & Media
Datasheets
SP1054 Series Datasheet
SP1053,54 Series Product Flyer
Circuit Protection Selection Guide
Video File
Littelfuse SP1053 and SP1054 Series Diodes | Digi-Key Daily
Building Automation – Protect/Sense/Control
Design Resources
HTML Datasheet
Circuit Protection Appl Matrix
SP1053,54 Series Product Flyer
SP1054 Series Datasheet
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Resources
Other Names
Standard Package
20,000
