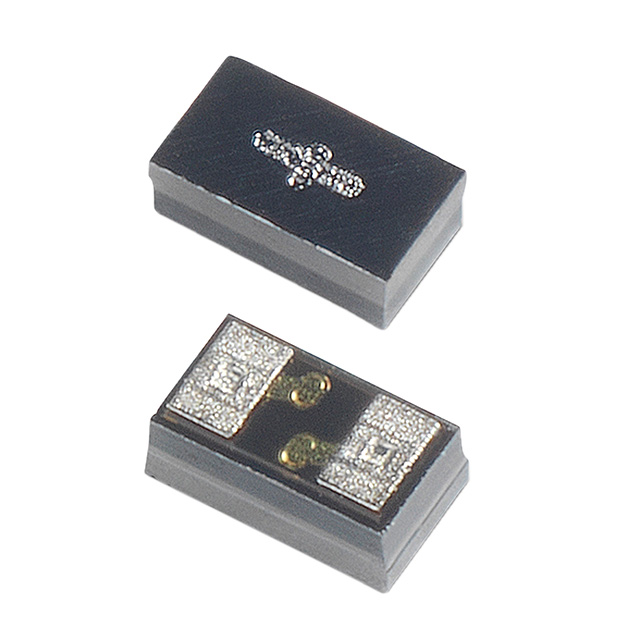

SP3042-01WTG Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
SP3042-01WTG
Product Number:
SP3042-01WTG
MFR Standard Lead Time:
Package/Case:
01005 (0402 Metric)
Detailed Description:
TVS DIODE 5.3VWM 12.5VC 01005
Datasheet:
Descnt:
12.5V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 01005, Flip Chip
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Littelfuse Inc.
Series
SP3042, SPA®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5.3V (Max)
Voltage - Breakdown (Min)
7.8V (Typ)
Voltage - Clamping (Max) Ipp
12.5V (Typ)
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
Power - Peak Pulse
20W
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
-
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
01005 (0402 Metric)
Supplier Device Package
01005, Flip Chip
Documents & Media
Featured Product
TVS Diode Array for Destructive ESD Discharges - SP3042 Series
IoT Kit for Sensing and Protection Designs
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
15,000
