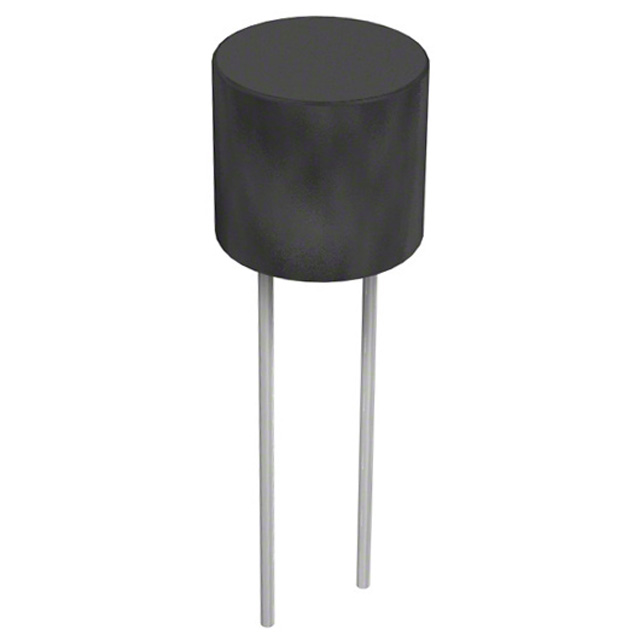

SR-5F-5A-BK Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
SR-5F-5A-BK
Product Number:
SR-5F-5A-BK
MFR Standard Lead Time:
13 Weeks
Package/Case:
Radial, Can, Vertical
Detailed Description:
FUSE BOARD MNT 5A 250VAC RADIAL
Datasheet:
Descnt:
5 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
In Stock
93
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Eaton - Electronics Division
Series
SR-5F
Packaging
Bulk
Part Status
Active
Mounting Type
Through Hole
Fuse Type
Board Mount (Cartridge Style Excluded)
Current Rating (Amps)
5 A
Voltage Rating - AC
250 V
Response Time
Fast Blow
Package / Case
Radial, Can, Vertical
Breaking Capacity Rated Voltage
50A
Melting I²t
55.0
Approval Agency
cULus, PSE
Operating Temperature
-40°C ~ 125°C
Color
-
Size / Dimension
0.335" Dia x 0.319" H (8.50mm x 8.10mm)
DC Cold Resistance
0.018 Ohms
-
Documents & Media
Datasheets
SR-5F Series
Fuse Accessory Selection Guide
PCN Design/Specification
S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014
Mult Devs Design Chg 13/NOV/2019
PCN Packaging
Shipping Box and Labels 05/Jan/2018
PSE Mark 21/Dec/2019
HTML Datasheet
SR-5F Series
Fuse Accessory Selection Guide
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.10.0040
-
Additional Resources
Other Names
Standard Package
200
