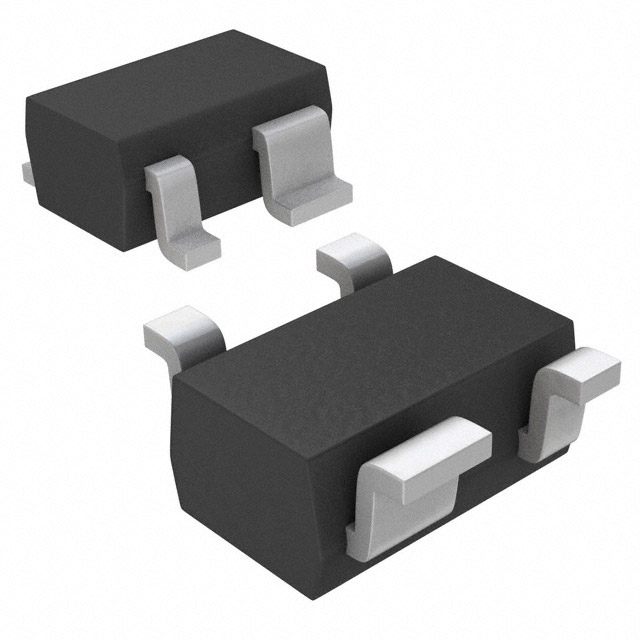

SR05 SMC Diode Solutions
Favorite
Compare
Manufacturer:
SMC Diode Solutions
MFR Product Number:
SR05
Product Number:
SR05
MFR Standard Lead Time:
Package/Case:
TO-253-4, TO-253AA
Detailed Description:
TVS DIODE 5VWM 20VC SOT143
Datasheet:
Descnt:
20V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
SMC Diode Solutions
Series
SR
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
Zener
Unidirectional Channels
2
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
20V
Current - Peak Pulse (10/1000µs)
25A (8/20µs)
Power - Peak Pulse
500W
Power Line Protection
Yes
Applications
Ethernet, USB
Capacitance Frequency
6.5pF 1MHz
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
TO-253-4, TO-253AA
Supplier Device Package
SOT-143
Base Product Number
SR05
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
