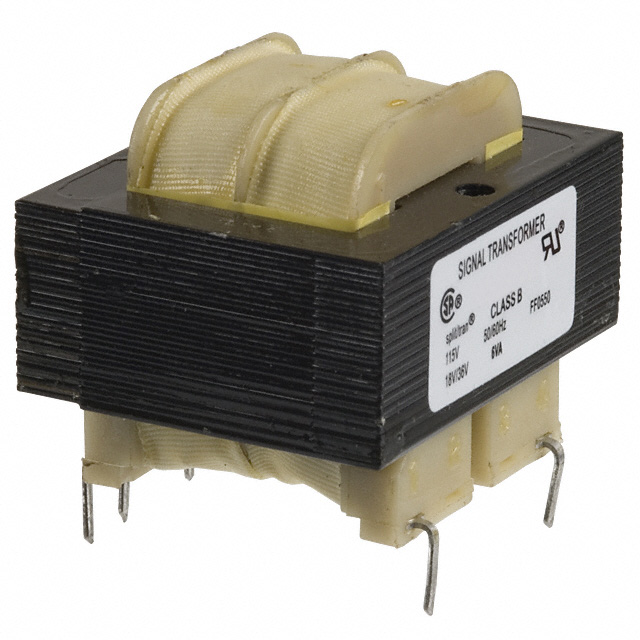

ST-4-28 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
ST-4-28
Product Number:
ST-4-28
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 6VA TH
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
ST
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V
Voltage - Secondary (Full Load)
Parallel 14V, Series 28V
Current - Output (Max)
Parallel 400mA, Series 200mA
Primary Winding(s)
Single
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
6VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
41.30mm L x 33.30mm W
Height - Seated (Max)
33.30mm
Voltage - Isolation
2500Vrms
Weight
0.44 lb (199.58 g)
Documents & Media
Datasheets
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Product Drawings
ST, DST Series Side
ST, DST Series Bottom
ST Series Schematic
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
50
