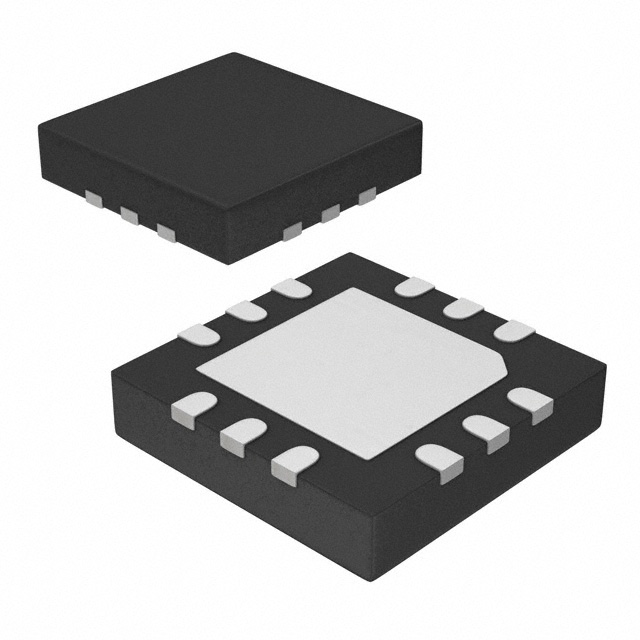

ST2S06BPQR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
ST2S06BPQR
Product Number:
ST2S06BPQR
MFR Standard Lead Time:
18 Weeks
Package/Case:
12-VQFN Exposed Pad
Detailed Description:
IC REG BUCK ADJ 800MA DL 12QFN
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 800mA 12-VQFN Exposed Pad
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
2
Voltage - Input (Min)
2.5V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
5.17V
Current - Output
800mA
Frequency - Switching
1.5MHz
Synchronous Rectifier
Yes
Operating Temperature
-30°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
12-VQFN Exposed Pad
Supplier Device Package
12-QFN (4x4)
Base Product Number
ST2S06
-
Documents & Media
Datasheets
ST2S06(A33,B)
ST2S06A33/ST2S06B AppNote
Other Related Documents
Product Training Modules
DC to DC Conversion Cookbook
Healthcare and Wellness
HTML Datasheet
ST2S06(A33,B)
ST2S06A33/ST2S06B AppNote
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,500
