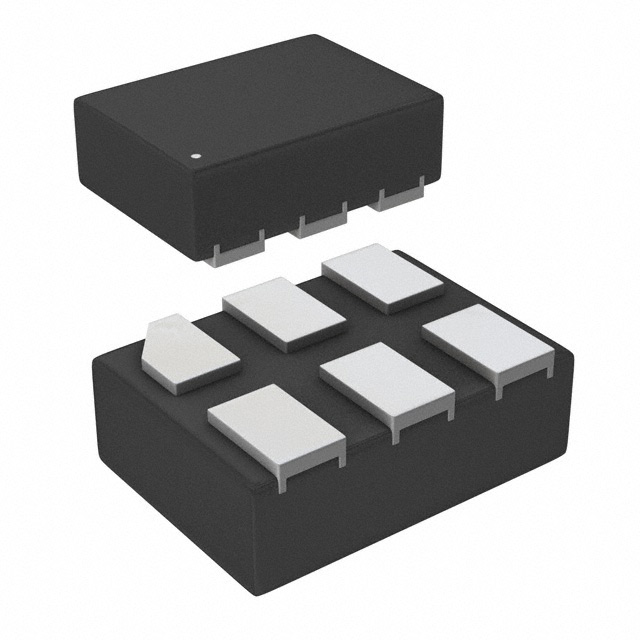

STG3155DTR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
STG3155DTR
Product Number:
STG3155DTR
MFR Standard Lead Time:
Package/Case:
6-UFDFN
Detailed Description:
IC SWITCH SPDT X 1 600MOHM 6DFN
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 600mOhm 6-DFN (1.45x1)
In Stock
10472
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
600mOhm
Channel-to-Channel Matching (ΔRon)
21mOhm
Voltage - Supply, Single (V+)
1.65V ~ 4.3V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
55ns, 30ns
-3db Bandwidth
70MHz
Charge Injection
53pC
Channel Capacitance (CS(off), CD(off))
6.6pF
Current - Leakage (IS(off)) (Max)
20nA
Crosstalk
-72dB 100kHz
Operating Temperature
-55°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
6-UFDFN
Supplier Device Package
6-DFN (1.45x1)
Base Product Number
STG3155
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
