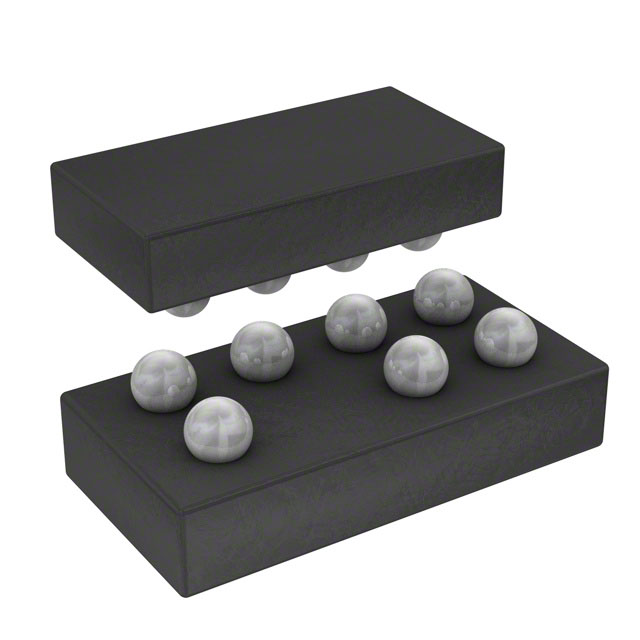

STG4159BJR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
STG4159BJR
Product Number:
STG4159BJR
MFR Standard Lead Time:
Package/Case:
7-WFBGA, FCBGA
Detailed Description:
IC SW SPDTX1 300MOHM 7FLIPCHIP
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 300mOhm 7-FlipChip
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
300mOhm
Channel-to-Channel Matching (ΔRon)
3mOhm
Voltage - Supply, Single (V+)
1.65V ~ 4.8V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
38ns, 17ns
-3db Bandwidth
28MHz
Charge Injection
140pC
Channel Capacitance (CS(off), CD(off))
30pF
Current - Leakage (IS(off)) (Max)
30nA
Crosstalk
-69dB 100kHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
7-WFBGA, FCBGA
Supplier Device Package
7-FlipChip
Base Product Number
STG4159
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
5,000
-
