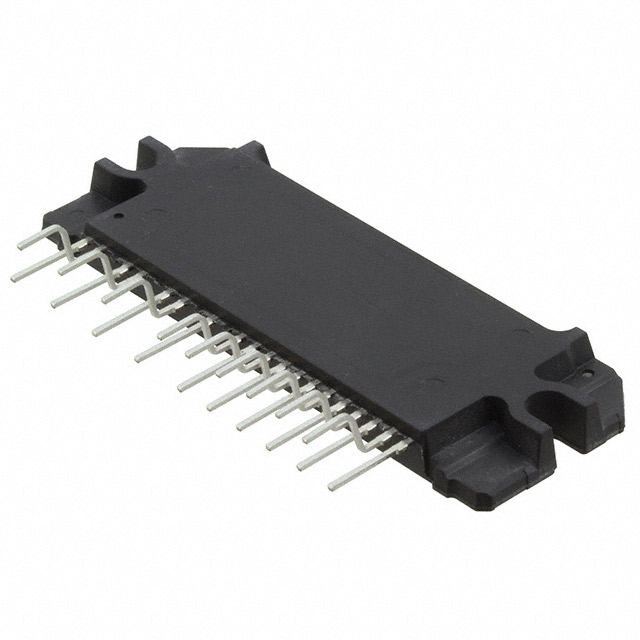

STK544UC62K-E onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
STK544UC62K-E
Product Number:
STK544UC62K-E
MFR Standard Lead Time:
Package/Case:
23-SIP, 19 Leads, Formed Leads
Detailed Description:
IC HALF BRIDGE DRIVER 10A 23SIP
Datasheet:
Descnt:
Half Bridge (3) Driver AC Motors IGBT 23-SIP-1
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tube
Part Status
Not For New Designs
Output Configuration
Half Bridge (3)
Applications
AC Motors
Interface
Logic
Load Type
Inductive
Technology
IGBT
Rds On (Typ)
-
Current - Output / Channel
10A
Current - Peak Output
20A
Voltage - Supply
12.5V ~ 17.5V
Voltage - Load
450V (Max)
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Bootstrap Circuit
Fault Protection
Shoot-Through, UVLO
Mounting Type
Through Hole
Package / Case
23-SIP, 19 Leads, Formed Leads
Supplier Device Package
23-SIP-1
Base Product Number
STK544
-
Documents & Media
Datasheets
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration STK544UC62K-E
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
8
