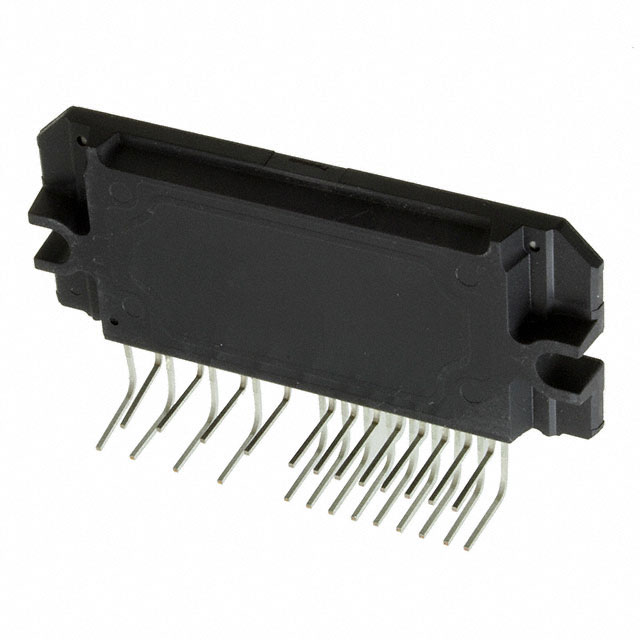

STK57FU394AG-E onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
STK57FU394AG-E
Product Number:
STK57FU394AG-E
MFR Standard Lead Time:
Package/Case:
35-SSIP, 25 Leads
Detailed Description:
IC HALF BRIDGE DRIVER 15A 35SIP
Datasheet:
Descnt:
Half Bridge (3) Driver AC Motors, DC Motors, General Purpose IGBT 35-SIP/SIP2A-3
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Half Bridge (3)
Applications
AC Motors, DC Motors, General Purpose
Interface
Logic
Load Type
Inductive
Technology
IGBT
Rds On (Typ)
-
Current - Output / Channel
15A
Current - Peak Output
30A
Voltage - Supply
12.5V ~ 17.5V
Voltage - Load
400V (Max)
Operating Temperature
150°C (TJ)
Features
Bootstrap Circuit
Fault Protection
Current Limiting, UVLO
Mounting Type
Through Hole
Package / Case
35-SSIP, 25 Leads
Supplier Device Package
35-SIP/SIP2A-3
Base Product Number
STK57F
-
Documents & Media
Datasheets
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration STK57FU394AG-E
PCN Obsolescence/ EOL
STKx obs 13/Jun/2022
Mult Dev EOL 7/Apr/2021
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
8
