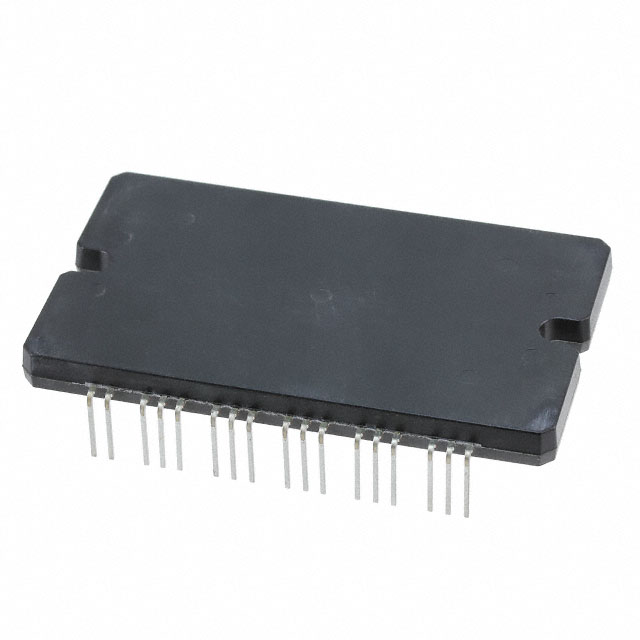

STK5F1U3E3D-E onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
STK5F1U3E3D-E
Product Number:
STK5F1U3E3D-E
MFR Standard Lead Time:
Package/Case:
44-DIP Module, 37 Leads
Detailed Description:
IC HALF BRIDGE DRIVER 50A 44DIP
Datasheet:
Descnt:
Half Bridge (3) Driver AC Motors IGBT 44-DIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Half Bridge (3)
Applications
AC Motors
Interface
Logic
Load Type
Inductive
Technology
IGBT
Rds On (Typ)
-
Current - Output / Channel
50A
Current - Peak Output
76A
Voltage - Supply
12.5V ~ 17.5V
Voltage - Load
450V (Max)
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Bootstrap Circuit, Status Flag
Fault Protection
Current Limiting, UVLO
Mounting Type
Through Hole
Package / Case
44-DIP Module, 37 Leads
Supplier Device Package
44-DIP
Base Product Number
STK5F1
-
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
PCN Obsolescence/ EOL
STKYYY 15/Jun/2017
Mult Dev EOL 29/Jan/2021
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
STK5F1U3E3D-EOS
Standard Package
6
