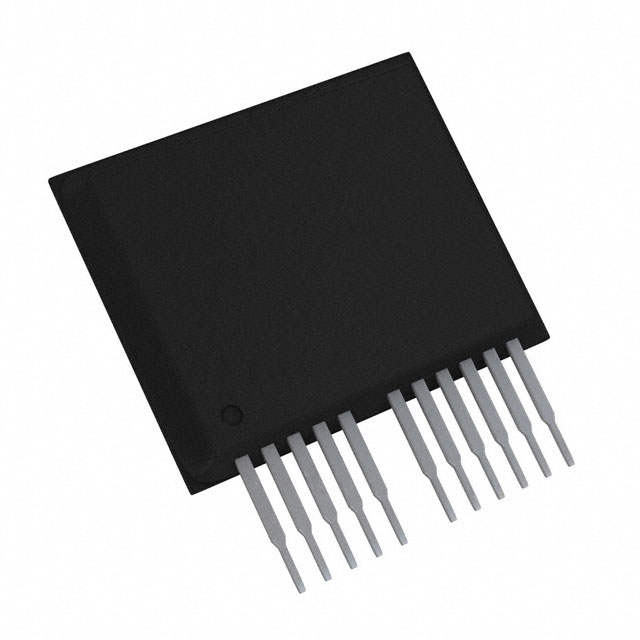

STK681-200-E onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
STK681-200-E
Product Number:
STK681-200-E
MFR Standard Lead Time:
Package/Case:
12-SIP, 11 Leads
Detailed Description:
IC HALF BRIDGE DRIVER 4.2A 12SIP
Datasheet:
Descnt:
Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET, IGBT 12-SIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Bulk
Part Status
Obsolete
Output Configuration
Half Bridge (2)
Applications
DC Motors, General Purpose
Interface
Logic
Load Type
Inductive
Technology
Power MOSFET, IGBT
Rds On (Typ)
-
Current - Output / Channel
4.2A
Current - Peak Output
-
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
10V ~ 42V
Operating Temperature
150°C (TJ)
Features
-
Fault Protection
-
Mounting Type
Through Hole
Package / Case
12-SIP, 11 Leads
Supplier Device Package
12-SIP
Base Product Number
STK681
-
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
17
