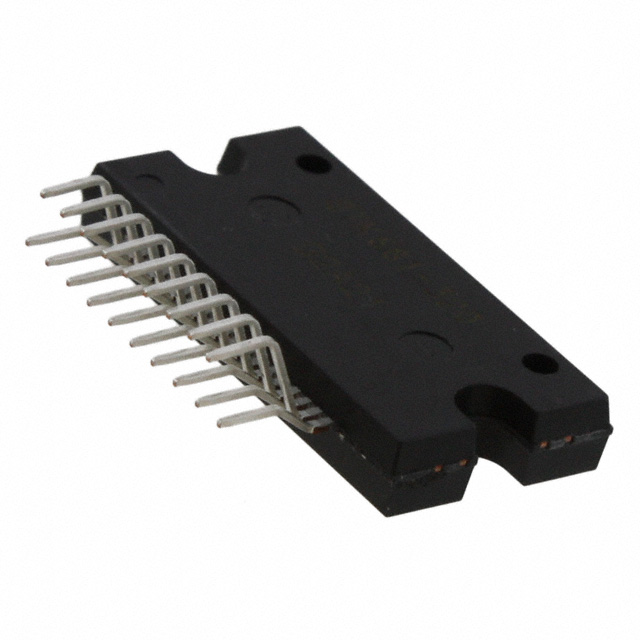

STK681-320 onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
STK681-320
Product Number:
STK681-320
MFR Standard Lead Time:
Package/Case:
19-SSIP Formed Leads
Detailed Description:
IC MOTOR DRIVER 4.75V-5.25V
Datasheet:
Descnt:
Motor Driver Power MOSFET Parallel
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Cut Tape (CT)
Tape & Box (TB)
Part Status
Obsolete
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (2)
Interface
Parallel
Technology
Power MOSFET
Step Resolution
-
Applications
General Purpose
Current - Output
5.2A
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
10V ~ 42V
Operating Temperature
150°C (TJ)
Mounting Type
Through Hole
Package / Case
19-SSIP Formed Leads
Supplier Device Package
-
Base Product Number
STK681
Documents & Media
Datasheets
STK681-320
STK681-320 Product Overview
Product Training Modules
Cooling Fan Motor Drivers
Hybrid ICs for Driving Brush-Type DC Motors
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
15
