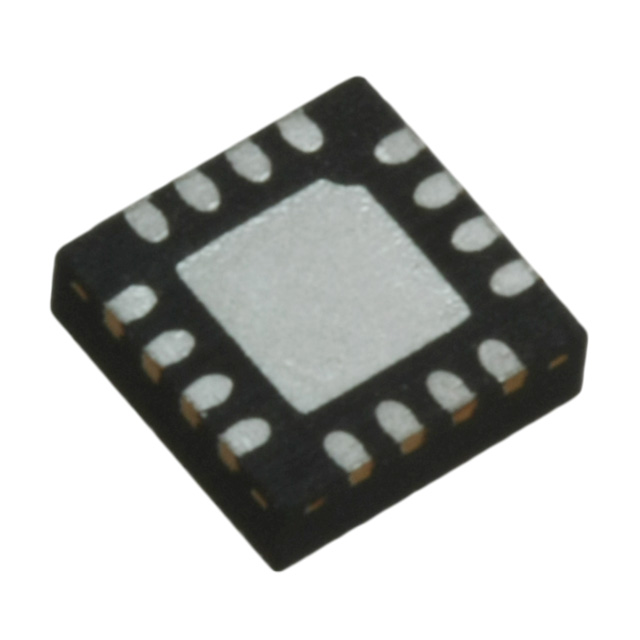

STLD20CP1PQR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
STLD20CP1PQR
Product Number:
STLD20CP1PQR
MFR Standard Lead Time:
Package/Case:
16-VFQFN Exposed Pad
Detailed Description:
IC LED DRV RGLTR PWM 300MA 16QFN
Datasheet:
Descnt:
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost), Switched Capacitor (Charge Pump) PWM, Single-Wire Dimming 300mA (Flash) 16-QFN (3x3)
In Stock
5843
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost), Switched Capacitor (Charge Pump)
Internal Switch(s)
Yes
Number of Outputs
2
Voltage - Supply (Min)
2.8V
Voltage - Supply (Max)
6V
Voltage - Output
17V
Current - Output / Channel
300mA (Flash)
Frequency
1.3MHz
Dimming
PWM, Single-Wire
Applications
Backlight, Camera Flash
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
16-VFQFN Exposed Pad
Supplier Device Package
16-QFN (3x3)
Base Product Number
STLD20
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
