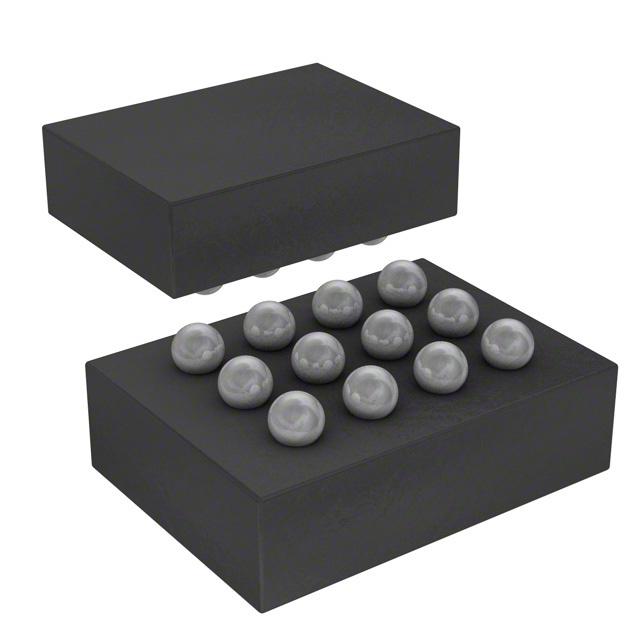

STLED25JR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
STLED25JR
Product Number:
STLED25JR
MFR Standard Lead Time:
Package/Case:
12-UFBGA, FCBGA
Detailed Description:
IC LED DRV RGLTR PWM 12FLIPCHIP
Datasheet:
Descnt:
LED Driver IC 5 Output DC DC Regulator Step-Up (Boost) PWM Dimming 125mA 12-FlipChip (1.4x1.8)
In Stock
7757
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
5
Voltage - Supply (Min)
2.3V
Voltage - Supply (Max)
5.5V
Voltage - Output
8.8V
Current - Output / Channel
125mA
Frequency
2.5MHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
12-UFBGA, FCBGA
Supplier Device Package
12-FlipChip (1.4x1.8)
Base Product Number
STLED25
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
