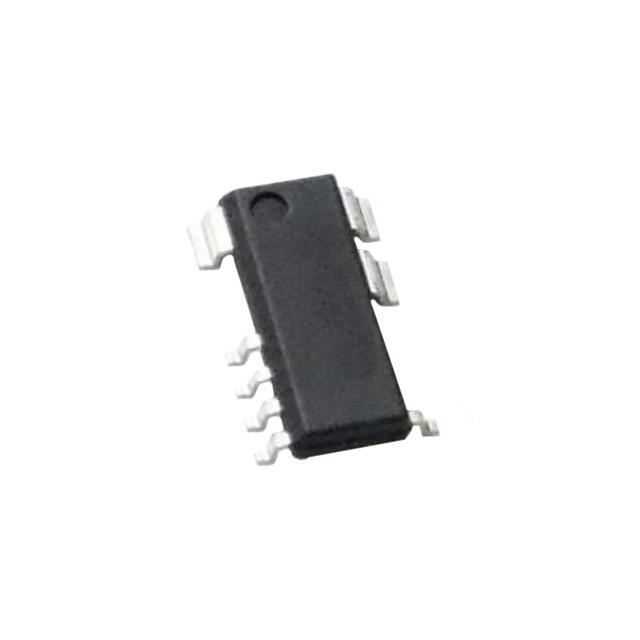

STR6S161HXD Sanken Electric USA Inc.
Favorite
Compare
Manufacturer:
Sanken Electric USA Inc.
MFR Product Number:
STR6S161HXD
Product Number:
STR6S161HXD
MFR Standard Lead Time:
30 Weeks
Package/Case:
16-SOIC (0.154\, 3.90mm Width)
Detailed Description:
AC/DC CONVERTER IC (INTEGRATED M
Datasheet:
Descnt:
Converter Offline Flyback Topology 100kHz 16-SOIC
In Stock
20
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Sanken Electric USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
700V
Topology
Flyback
Voltage - Start Up
15 V
Voltage - Supply (Vcc/Vdd)
8.5V ~ 32V
Duty Cycle
75%
Frequency - Switching
100kHz
Power (Watts)
33.5 W
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features
Frequency Control, Soft Start
Operating Temperature
-40°C ~ 125°C (TA)
Package / Case
16-SOIC (0.154", 3.90mm Width)
Supplier Device Package
16-SOIC
Mounting Type
Surface Mount
Base Product Number
STR6S161
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,500
