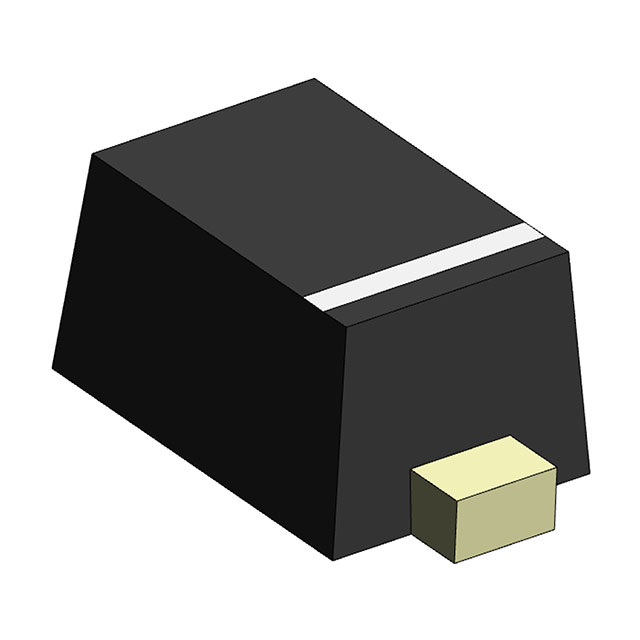

STS521070U701 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
STS521070U701
Product Number:
STS521070U701
MFR Standard Lead Time:
13 Weeks
Package/Case:
SC-79, SOD-523
Detailed Description:
TVS DIODE 7VWM 16VC SOD523
Datasheet:
Descnt:
16V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
In Stock
104322
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Eaton - Electronics Division
Series
ST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
1
Voltage - Reverse Standoff (Typ)
7V (Max)
Voltage - Breakdown (Min)
7.5V
Voltage - Clamping (Max) Ipp
16V
Current - Peak Pulse (10/1000µs)
9A (8/20µs)
Power - Peak Pulse
120W
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
70pF 1MHz
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
SC-79, SOD-523
Supplier Device Package
SOD-523
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Resources
Other Names
Standard Package
5,000
