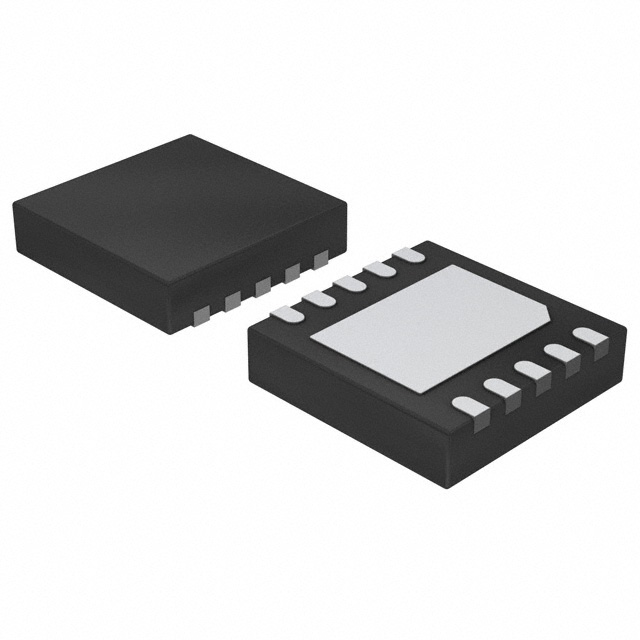

SZESD1014MUTAG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
SZESD1014MUTAG
Product Number:
SZESD1014MUTAG
MFR Standard Lead Time:
Package/Case:
10-UFDFN Exposed Pad
Detailed Description:
4 LINE SURGE RATED RAIL-RAIL PRO
Datasheet:
Descnt:
11V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 10-UDFN (2.6x2.6)
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Last Time Buy
Type
Steering (Rail to Rail)
Unidirectional Channels
4
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Voltage - Breakdown (Min)
5V
Voltage - Clamping (Max) Ipp
11V
Current - Peak Pulse (10/1000µs)
30A (8/20µs)
Power - Peak Pulse
450W
Power Line Protection
Yes
Applications
-
Capacitance Frequency
3.8pF 1MHz
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Package / Case
10-UFDFN Exposed Pad
Supplier Device Package
10-UDFN (2.6x2.6)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
3,000
