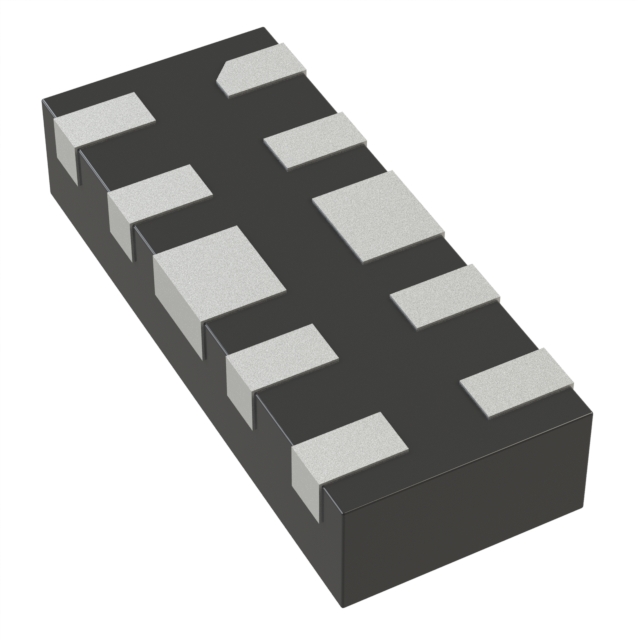

SZESD7104MTWTAG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
SZESD7104MTWTAG
Product Number:
SZESD7104MTWTAG
MFR Standard Lead Time:
9 Weeks
Package/Case:
10-WFDFN
Detailed Description:
BI-DIRECTIONAL 4 LINE TVS
Datasheet:
Descnt:
10V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-WDFNW (2.5x1)
In Stock
6000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
4
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
5.5V
Voltage - Clamping (Max) Ipp
10V
Current - Peak Pulse (10/1000µs)
1A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
No
Applications
HDMI, USB
Capacitance Frequency
0.3pF 1MHz
Operating Temperature
-55°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Package / Case
10-WFDFN
Supplier Device Package
10-WDFNW (2.5x1)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
