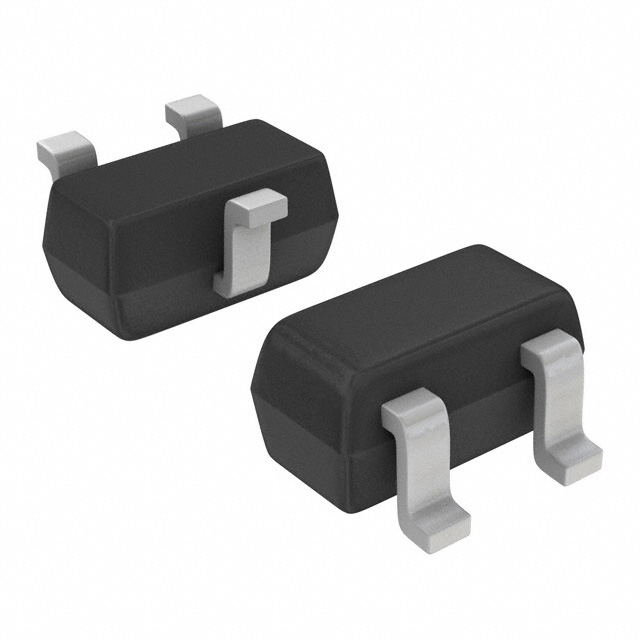

SZESDR0502BT1G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
SZESDR0502BT1G
Product Number:
SZESDR0502BT1G
MFR Standard Lead Time:
13 Weeks
Package/Case:
SC-75, SOT-416
Detailed Description:
TVS DIODE 5VWM 15VC SC75 SOT416
Datasheet:
Descnt:
15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SC-75, SOT-416
In Stock
937
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
2
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
5.8V
Voltage - Clamping (Max) Ipp
15V
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
Power - Peak Pulse
20W
Power Line Protection
No
Applications
-
Capacitance Frequency
0.5pF 1MHz, 0.25pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Package / Case
SC-75, SOT-416
Supplier Device Package
SC-75, SOT-416
Base Product Number
SZESDR0502
-
Documents & Media
Datasheets
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration SZESDR0502BT1G
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
