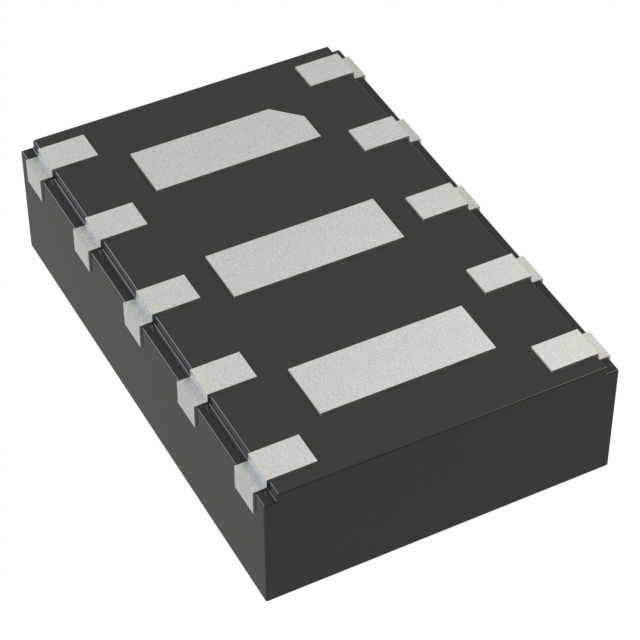

SZNSP8814LMTWTAG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
SZNSP8814LMTWTAG
Product Number:
SZNSP8814LMTWTAG
MFR Standard Lead Time:
22 Weeks
Package/Case:
10-WDFN
Detailed Description:
4 CHANNEL ESD & SURGE PROTECTION
Datasheet:
Descnt:
15V Clamp 35A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank 10-WDFNW (3x2)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
4
Voltage - Reverse Standoff (Typ)
3V (Max)
Voltage - Breakdown (Min)
3.2V
Voltage - Clamping (Max) Ipp
15V
Current - Peak Pulse (10/1000µs)
35A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
No
Applications
Ethernet
Capacitance Frequency
2pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount, Wettable Flank
Package / Case
10-WDFN
Supplier Device Package
10-WDFNW (3x2)
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
