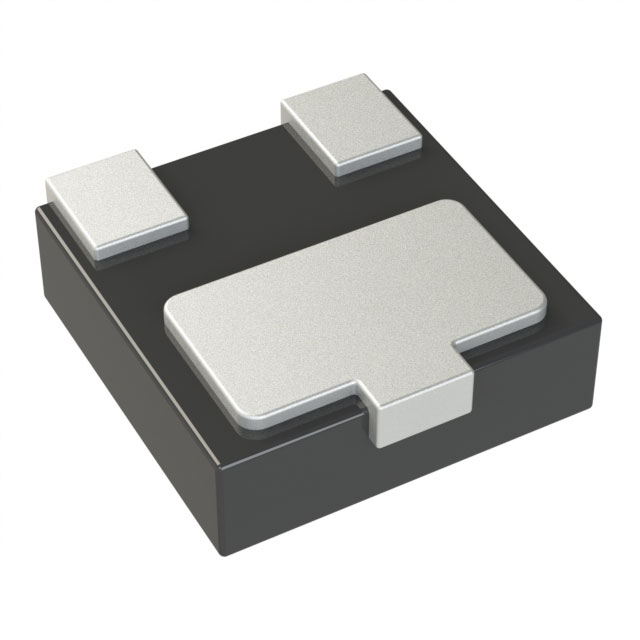

SZNUP2124MXWTBG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
SZNUP2124MXWTBG
Product Number:
SZNUP2124MXWTBG
MFR Standard Lead Time:
32 Weeks
Package/Case:
3-XFDFN
Detailed Description:
28V CAN-FD ESD PROTECTION IN WDF
Datasheet:
Descnt:
40V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank 3-XDFNW (1x1)
In Stock
13979
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
2
Voltage - Reverse Standoff (Typ)
24V (Max)
Voltage - Breakdown (Min)
26V
Voltage - Clamping (Max) Ipp
40V
Current - Peak Pulse (10/1000µs)
3A (8/20µs)
Power - Peak Pulse
120W
Power Line Protection
No
Applications
-
Capacitance Frequency
6pF 1MHz (Max)
Operating Temperature
-55°C ~ 175°C (TJ)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount, Wettable Flank
Package / Case
3-XFDFN
Supplier Device Package
3-XDFNW (1x1)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
